W88113C

Features: 1.1.1 Host Interface· Support ATAPI CD-ROM standard (SFF 8020)· Ultra DMA/33 support to achieve high throughput and data integrity· 32-byte Data FIFO to increase data throughput· Support Block-offset transfer and Linear Address transfer· Automatic ATAPI sequence handling· Automatic data ...

product image

W88113C Picture
See larger image
SeekIC No. : 004545237 Detail

W88113C: Features: 1.1.1 Host Interface· Support ATAPI CD-ROM standard (SFF 8020)· Ultra DMA/33 support to achieve high throughput and data integrity· 32-byte Data FIFO to increase data throughput· Support B...

W88113C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W88113C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1.1.1 Host Interface
·  Support ATAPI CD-ROM standard (SFF 8020)
·  Ultra DMA/33 support to achieve high throughput and data integrity
·  32-byte Data FIFO to increase data throughput
·  Support Block-offset transfer and Linear Address transfer
·  Automatic ATAPI sequence handling
·  Automatic data transfer trigger and cache management
1.1.2 DSP Interface
·  Supports CD-ROM, CD-ROM/XA, CD-I, Video-CD, Photo-CD, and CD-Plus formats
·  Supports various types of microprocessors and DSPs
·  Supports CD-ROM data descrambling
·  Supports both real-time correction and buffer-independent correction
·  One byte error correction per P-word and Q-word
·  Supports error detection of CD-ROM data
·  Automatic repeated error correction
·  Real time EDC checking logic
·  Q-channel extraction by hardware to support precise CD-DA data reading
·  Using pin BCK as subcode reference clock
·  Target Search and Status Flag Collection to minimize micro-processor overhead
1.1.3 Microcontroller Interface
·  Direct Register Addressing (default) and Indirect Register Addressing support
·  Programmable ALE pin
·  Support 2 programmable general I/O ports and one programmable general input port
1.1.4 DRAM Interface
·  Various DRAMs support (128K x 8, 256K x 8, 1M x 8, 64K x 16, 128K x 16, 256K x 16)
·  Supports ring-control-register to add flexibility of DRAM control
·  FPG/EDO DRAM support
·  Programmable DRAM timing
·  Programmable refresh timing
1.1.5 Audio Playback Interface
·  Audio playback in CAV mode
·  Programmable audio data output pin
·  Programmable audio reference clock
·  Flexible left-right mute and volume control
·  IEC-958 Digital Audio output
1.1.6 Miscellaneous
·  Flexible power management
·  Programmable internal system clock (up to 4 times fast of crystal input)
·  Clock output with various frequency
·  100-pin QFP/LQFP package


Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Winbond customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Winbond for any damages resulting from such improper use or sales

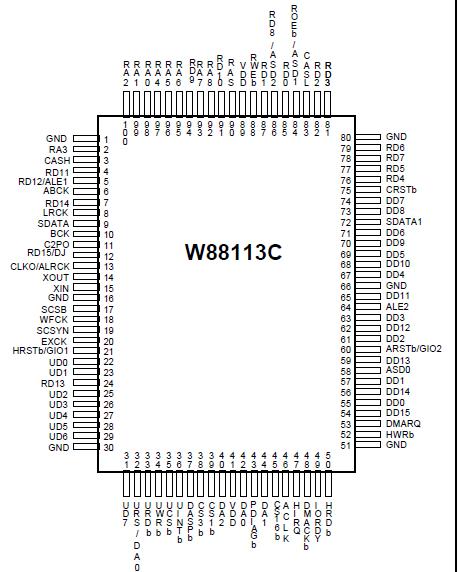

Pinout

Connection Diagram
