W89C841D

Features: · Integrated Fast Ethernet MAC controller with10/100M Ethernet transceiver in one chip· Supports MII interface for programmable single PHYceiver or single MAC controller· Complies with IEEE 802.3, 802.3u specification· Supports 10BAST-T, 100BASE-TX and 100BASE-FX· Supports auto cross-ove...

product image

W89C841D Picture
SeekIC No. : 004545245 Detail

W89C841D: Features: · Integrated Fast Ethernet MAC controller with10/100M Ethernet transceiver in one chip· Supports MII interface for programmable single PHYceiver or single MAC controller· Complies with IEE...

floor Price/Ceiling Price

Part Number:
W89C841D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated Fast Ethernet MAC controller with10/100M Ethernet transceiver in one chip
· Supports MII interface for programmable single PHYceiver or single MAC controller
· Complies with IEEE 802.3, 802.3u specification
· Supports 10BAST-T, 100BASE-TX and 100BASE-FX
· Supports auto cross-over operation
· Supports half duplex and full duplex for 10/100M operation
· Supports flow control for full duplex mode compliant with IEEE 802.3x
· Complies with IEEE802.3ac, 802.1Q for VLAN-tagged frame
· Supports LED pins for network activity indication
· Configurable to PCI, MiniPCI or CardBus bus interface
· Supports PCI/MiniPCI bus master mode for DMA operation, fully compliant with PCI Local Bus
Specification R2.2 and Mini PCI Specification R1.0
· Supports CardBus Information Structure (CIS)
· Supports 25 to 33 MHz PCI clock speed
· Compliant with APCI R1.0, PCI power management R1.1 and Network device Class Power
management Reference specification V1.0a
· Supports power management event asserted from D3(cold) device state with auxiliary power existing
· Supports wakeup function for Link status change, Magic Packet and 5 sets of wakeup frames
· Supports Vital Product Data (VPD) data structure up to 64 Bytes
· Supports 2 sets of independent embedded 2K bytes FIFO for transmit and receive
· Flexible multicast address filtering modes
- 64-bit hash-table
- All multicast and promiscuous
· Supports 25 MHz crystal or oscillator as internal clock source
· Provides EEPROM (93C46 or 93C56) to store configuration parameters, VPD, and CIS information
· Supports 8KB to 256 KB BootROM interface for both PROM and Flash memory
· 3.3V powered I/Os with 5V tolerant inputs
· Packaged in 128-pin PQFP for W89C841F/ LQFP for W89C841D



Pinout

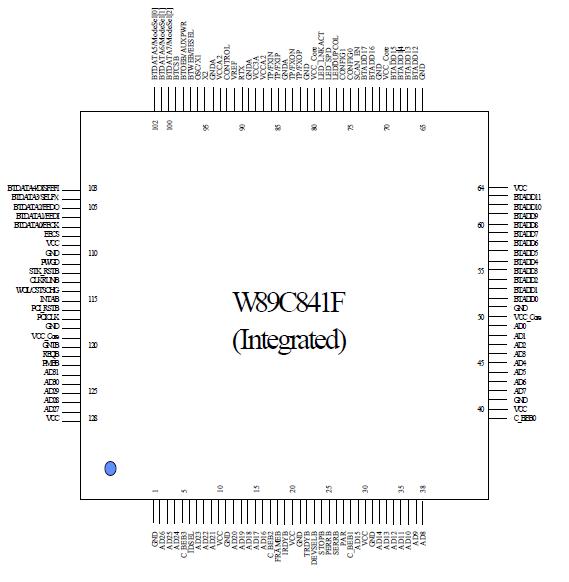

  Connection Diagram


Specifications

PARAMETER
SYMBOL
MIN.
MAX.
UNIT
Operating Temperature
TA
0
70
°C
Storage Temperature
TS
-55
125
°C
Supply Voltage
VCC_core
VCC_IO
2.25
3.0
2.75
3.6
V
Input Voltage
VIN
VSS
5 + 0.5
V
Output Voltage
VOUT
VSS
3.6
V



Description

W89C841F is a highly integrated PCI Fast Ethernet MAC controller with embedded Ethernet transceiver for 100BaseTX, 100BaseFX and 10BaseT. It is compliant with IEEE 802.3, 802.3u specification. Auto cross-over function is supported on TP terminal and the network status of W89C841F is indicated by 3 LED pins. W89C841F supports full/half duplex, asymmetrical flow control operation compliant with IEEE 802.3x and VLAN tagged frame compliant with IEEE 802.1p.

According to different applications, W89C841F can be configured into one of 3 modes to operate by setting the pins CONFIG[1:0] and ModeSel[2:0] after power-on reset. The 3 operational modes of W89C841F are listed as below.

1. PCI Ethernet MAC controller with internal Ethernet PHYceiver.
2. Pure PCI Ethernet MAC Controller
3. Pure 10/100M PHYceiver

W89C841F provides a host bus interface complying with the PCI local bus specification R2.2, Mini PCI Specification R1.0 and CardBus. W89C841F plays as a bus master role to improve network performance and reduce the bus utilization. There are built-in 2K bytes TX FIFO and 2K bytes RX FIFO to store data. The DMA controller handles the data transfer between the host memory and the FIFOs. The data received from network are queued into the RX FIFO then directly moved into the host memory through the PCI bus. On the other hand, the transmitted data are fetched from the host memory and directly queued into the transmit FIFO. No extra on-board memory is needed for data buffering during operation.

For PC99/2001, W89C841F implements power management function that are compliant with Advanced Configuration and Power Interface (ACPI) specification R1.0, PCI Power Management Interface specification R1.1 and Network Device Class Power Management Reference specification V1.0a. W89C841F supports D3cold power management state if auxiliary power is detected. 3 types of wakeup events are acceptable like link status change, Magic Packet and 5 sets of wake-up frames.

EEPROM (93C46) is supported by W89C841F to store configuration and Vital Product Data (VPD) information. The length of VPD information is up to 64 bytes. W89C841F can access the CardBus  information Structure (CIS) information that is stored at EEPROM (93C56) or BootROM. W89C841F also supports BootROM/Flash interface to read/write BootROM or Flash memory.
