Product Details

Description



Features:

• Real Time Clock/Calendar
-Tracks time in Hours, Minutes, Seconds and Hundredths of a Second
-Day of the Week, Day, Month, and Year
• 2 Polled Alarms (Non-volatile)
-Settable on the Second, Minute, Hour, Day of the Week, Day, or Month
-Repeat Mode (periodic interrupts)
• Oscillator Compensation on chip
-Internal feedback resistor and compensation capacitors
-64 position Digitally Controlled Trim Capacitor
-6 digital-frequency adjustment setting to ±30ppm
• CPU Supervisor Functions
-Power On Reset, Low Voltage Sense
-Watchdog Timer (SW Selectable: 0.25s, 0.75s, 1.75s, off)
• Battery Switch or Super Cap Input
• 32K x 8 Bits of EEPROM
-128-Byte Page Write Mode
-8 modes of Block Lock™ Protection
-Single Byte Write Capability
• High Reliability
-Data Retention: 100 years
-Endurance: 100,000 cycles per byte
• 2-Wire™ Interface interoperable with I2C*
-400kHz data transfer rate
• Frequency Output (SW Selectable: Off, 1Hz, 100Hz, or 32.768kHz)
• Low Power CMOS
-1.25µA Operating Current (Typical)
• Small Package Options
-16-Lead SOIC and 14-Lead TSSOP


Application

• Utility Meters
• HVAC Equipment
• Audio / Video Components
• Set Top Box / Television
• Modems
• Network Routers, Hubs, Switches, Bridges
• Cellular Infrastructure Equipment
• Fixed Broadband Wireless Equipment
• Pagers / PDA
• POS Equipment
• Test Meters / Fixtures
• Office Automation (Copiers, Fax)
• Home Appliances
• Computer Products
• Other Industrial / Medical / Automotive

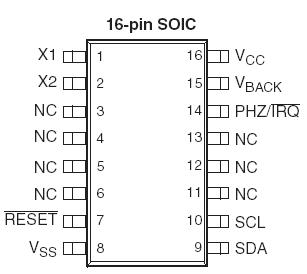

Pinout

Connection Diagram Connection Diagram


Specifications

Temperature Under Bias ................... -65°C to +135°C
Storage Temperature ........................ -65°C to +150°C
Voltage on VCC, VBACK and PHZ/IRQ
(respect to ground)...............................-0.5V to 7.0V
Voltage on SCL, SDA, X1 and X2
pin (respect to ground) ............... -0.5V to 7.0V or 0.5V
above VCC or VBACK (whichever is higher)
DC Output Current .............................................. 5 mA
Lead Temperature (Soldering, 10 sec).............. 300°C
