Features:

• High Performance 16-bit CPU with 5-Stage Pipeline
   25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution)
   1-Cycle Multiplication (16 * 16 bit), Background Division (32 / 16 bit) in 21 Cycles
   1-Cycle Multiply-and-Accumulate (MAC) Instructions
   Enhanced Boolean Bit Manipulation Facilities
   Zero-Cycle Jump Execution
   Additional Instructions to Support HLL and Operating Systems
   Register-Based Design with Multiple Variable Register Banks
   Fast Context Switching Support with Two Additional Local Register Banks
   16 Mbytes Total Linear Address Space for Code and Data
   1024 Bytes On-Chip Special Function Register Area (C166 Family Compatible)
• 16-Priority-Level Interrupt System with up to 63 Sources, Sample-Rate down to 50 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space
• Clock Generation via on-chip PLL (factors 1:0.15 . 1:10), or via Prescaler (factors 1:1 . 60:1)
• On-Chip Memory Modules
   2 Kbytes On-Chip Dual-Port RAM (DPRAM)
   2 Kbytes On-Chip Data SRAM (DSRAM, XC164KM-8F only)
   2 Kbytes On-Chip Program/Data SRAM (PSRAM)
   64 Kbytes (XC164KM-8F) or 32 Kbytes (XC164KM-4F) On-Chip Program Memory (Flash Memory)
• On-Chip Peripheral Modules
   16-Channel General Purpose Capture/Compare Unit (CAPCOM2)
   Multi-Functional General Purpose Timer Unit with 5 Timers
   Two Synchronous/Asynchronous Serial Channels (USARTs)
   Two High-Speed-Synchronous Serial Channels
   On-Chip TwinCAN Interface (Rev. 2.0B active) with 32 Message Objects (Full CAN/Basic CAN) on Two CAN Nodes, and Gateway Functionality
   On-Chip Real Time Clock, Driven by the Main Oscillator
• Idle, Sleep, and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
• Up to 47 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• On-Chip Bootstrap Loader
• On-Chip Debug Support via JTAG Interface


Pinout

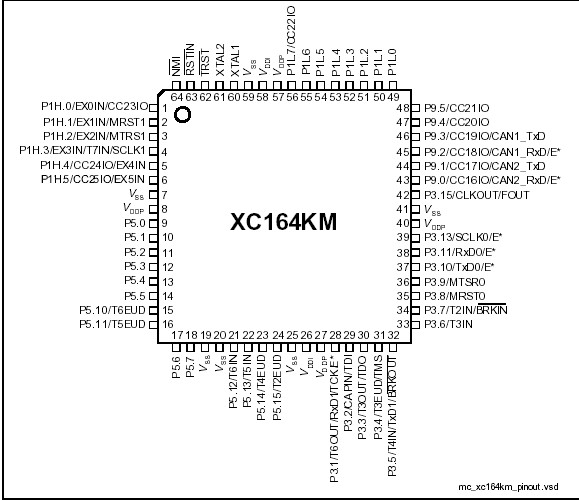

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Notes
Min. Max.
Storage temperature TST -65 150 °C -
Junction temperature TJ -40 150 °C under bias
Voltage on VDDI pins with
respect to ground (VSS)		 VDDI -0.5 3.25 V -
Voltage on VDDP pins with
respect to ground (VSS)		 VDDP -0.5 6.2 V -
Voltage on any pin with
respect to ground (VSS)		 VIN -0.5 VDDP + 0.5
 V -
Input current on any pin
during overload condition		 - -10 10 mA -
Absolute sum of all input
currents during overload
condition		 - - |100| mA -



Description

The XC164KM derivatives are high-performance members of the Infineon XC166 Family of full featured single-chip CMOS microcontrollers. These XC164KM devices extend the functionality and performance of the C166 Family in terms of instructions (MAC unit), peripherals, and speed. They combine high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. They also provide clock generation via PLL and various on-chip memory modules such as program Flash, program RAM, and data RAM.
