Features: In-system programmable 3.3V PROMs for configuration of Xilinx FPGAs
-Endurance of 20,000 program/erase cycles
-Program/erase over full commercial/industrial voltage and temperature range (40°C to +85°C)
IEEE Std 1149.1 boundary-scan (JTAG) support
Simple interface to the FPGA
Cascadable for storing longer or multiple bitstreams
Low-power advanced CMOS FLASH process
Dual configuration modes
-Serial Slow/Fast configuration (up to 33 MHz)
-Parallel (up to 264 Mb/s at 33 MHz)
5V tolerant I/O pins accept 5V, 3.3V and 2.5V signals
3.3V or 2.5V output capability
Available in PC20, SO20, PC44, and VQ44 packages
Design support using the Xilinx Alliance and Foundation series software packages.
JTAG command initiation of standard FPGA configurationPinout

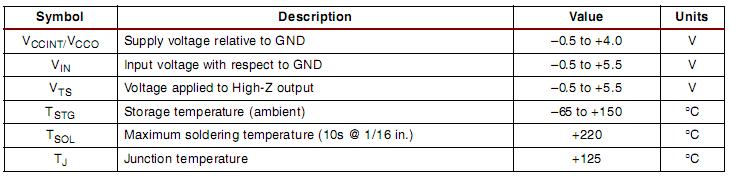

Specifications
DescriptionXilinx introduces the XC18V00 series of in-system program-mable configuration PROMs (Figure1). XC18V00 Devices in this 3.3V family include a 4-megabit, a 2-megabit, a 1-megabit, and a 512-kilobit PROM that provide an easy-to-use, cost-effec-tive method for re-programming and storing Xilinx FPGA configuration bitstreams.
When the XC18V00 FPGA is in Master Serial mode, it generates a configuration clock that drives the PROM. A short access time after CE and OE are enabled, data is available on the PROM DATA (D0) pin that is connected to the FPGA DIN pin. New data is available a short access time after each ris-ing clock edge. The FPGA generates the appropriate num-ber of clock pulses to complete the configuration. When the FPGA is in Slave Serial mode, the PROM and the FPGA are clocked by an external clock.
When the XC18V00 FPGA is in Master-SelectMAP mode, the FPGA generates a configuration clock that drives the PROM.When the FPGA is in Slave-Parallel or Slave-SelectMAP Mode, an external oscillator generates the configuration clock that drives the PROM and the FPGA. After CE and OE are enabled, data is available on the PROMs DATA (D0-D7) pins. New data is available a short access time after each rising clock edge. The data is clocked into the FPGA on the following rising edge of the CCLK. A free-run-ning oscillator can be used in the Slave-Parallel or Slave-SelecMAP modes.
Multiple XC18V00 devices can be concatenated by using the CEO output to drive the CE input of the following device. The clock inputs and the DATA outputs of all PROMs in this chain are interconnected. All devices are compatible and can be cascaded with other members of the family or with the XC17V00 one-time programmable Serial PROM family.
XC18V00 Data Sheet
