Product Details

Description



Features:

Output Frequencies : 10MHz to 100MHz (Qo = f0 x N/M)
Reference Oscillation (f0) : 5MHz to 35MHz
Divider Ratios (M) : Selectable from divisions of 1 to 2047
Multiplier Ratios (N) : Selectable from multiplications of 20 to 2047
Output : Q1 output selectable from reference oscillation, compar
                ative frequencies, PLL output frequencies/2, comparative
                 frequencies/2. Operating Voltage Range : 3.0V to 5.5V
Low Power Consumption : CMOS
Ultra Small Package : SOT - 26 mini mold


Application

􀀀Crystal Oscillation Modules
􀀀Personal Computers
􀀀PDAs
􀀀Portable Audio Systems
􀀀Various System Clocks


Pinout

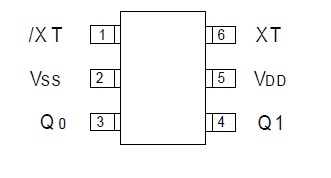

Connection Diagram


Specifications

PARAMETER

SYMBOL

CONDITIONS

UNITS

Supply Voltage

VDD

VSS - 0.3 to VSS + 7.0

V

XT Pin Voltage

VXT

VSS - 0.3 to VDD + 0.3

V

/XT Pin Voltage

V/XT

VSS - 0.3 to VDD + 0.3

V

CE Pin Voltage

VCE

VSS - 0.3 to VDD + 0.3

V

Qo Pin Voltage

VQO

VSS - 0.3 to VDD + 0.3

V

Qo Output Current

IQO

+/- 50

mA

 Q1 Output Current

  IQ1

 +/- 50

  mA

Power Dissipation

PD

150

mW

Ambient Temp.

Topr

-30 to +80

Storage Temp.

Tstg

-40 to +125




Description

The XC25BS2 series are high frequency, low power consumption PLL clock generator ICs with built-in crystal oscillator circuits, divider circuits & multiplier PLL circuits.Laser trimming gives the option of being able to select from divider ratios (M) of 1 to 2047 and multiplier ratios (N) of 20 to 2047.

Output frequency (Qo) of XC25BS2 is equal to reference oscillation (f0) multiplied by N/M, within a range of 10MHz to 100MHz. Q1 output is selectable from reference oscillation, comparative frequencies, PLL output frequencies /2, comparative frequencies/2. Further, comparative frequencies, within a range of 14KHz to 500KHz, can be obtained by dividing the reference oscillation.
