XC6404

Features: Maximum Output Current more than 500mA(600mA limit) (2.5V<VROUT<4.9V)Dropout Voltage 200mV (IROUT=100mA)Operating Voltage Range 2.0V ~ 6.0VVR Setting Output Voltage Range 0.9V ~ 5.1V(100mV step, ± 2%)Detect Voltage Setting Range 0.9V ~ 5.5V(100mV step, ± 2%)When monitoring VINmore ...

product image

XC6404 Picture
SeekIC No. : 004547992 Detail

XC6404: Features: Maximum Output Current more than 500mA(600mA limit) (2.5V<VROUT<4.9V)Dropout Voltage 200mV (IROUT=100mA)Operating Voltage Range 2.0V ~ 6.0VVR Setting Output Voltage Range 0.9V ~ 5.1V...

floor Price/Ceiling Price

Part Number:
XC6404
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Maximum Output Current                                  more than 500mA
                                                                         (600mA limit)
                                                                         (2.5V<VROUT<4.9V)
Dropout Voltage                                               200mV (IROUT=100mA)
Operating Voltage Range                                 2.0V ~ 6.0V
VR Setting Output Voltage Range                     0.9V ~ 5.1V
                                                                         (100mV step, ± 2%)
Detect Voltage Setting Range                           0.9V ~ 5.5V
                                                                         (100mV step, ± 2%)
When monitoring VIN                                        more than 2.0V
VR.VD Temperature Coefficient                         ±100ppm/OC (TYP.)
Low Power Consumption                                 35µA (TYP.)
High Ripple Rejection                                       65dB (@10kHz)
Ultra Small Packages                                       SOT-25 (SOT-23-5)
                                                                        SOT-89-5
Operating Temperature Range                        - 40 ~ 85OC
Low ESR Capacitor Compatible



Application

 CD-ROM, CD-R/RW drive
DVD drive
HDD drive
Cameras, Video recorders
Portable AV equipment
Battery powered equipment

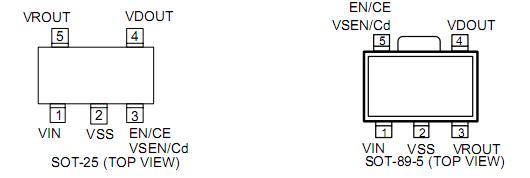

Pinout

  Connection Diagram


Description

The XC6404 series are highly precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector. They are fabricated using Torex's CMOS process. Performance features of the XC6404 includes high ripple rejection and low dropout voltage, and the XC6404 features a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor.

Detect voltage of XC6404 is selectable in 100mV increments within the range of 0.9V to 5.5V and the LDO output voltage is selectable within a range of 0.9V to 5.1V, also in 100mV increments.

The XC6404 is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series.

The current limiter's foldback circuit also operates as a short circuit protection for the output current limiter and the output pin.

The XC6404 provides options to the user to select from a variety of circuit features, such as detector monitoring, detector output logic, CE and EN pin input logic, internal pull-up / down resistance, and power ready.

The IC XC6404's internal regulator circuit can be placed in stand-by mode via the EN function (XC6404 A to C series).  The whole IC can be put in to stand-by mode via the CE function with the XC6404D series (semi-custom).  In the stand-by mode, power consumption is greatly reduced.
The XC6404A and B series features the toggle operation function.  The regulator output can be OFF when the XC6404B series detects voltage (semi-custom).

The XC6404E series can monitor another power source by using the VSEN pin (semi-custom).

The XC6404F series can delay the detector output: the delay time can be controlled by the use of an external capacitor (semi-custom).
