Features: • 5V and 3.3V with 5V Tolerant Inputs Operation
• Single Interrupt Output for all 8 UARTs
• Global Interrupt Source for all 8 UARTs
• 5G "Flat" UART Registers for Configurations
• Simultaneous UART Channels Initialization
• Auto RS485 Half-duplex Control with Programmable Turn-around Delay
• A General Purpose 16-bit Timer/Counter
• Sleep Mode with Wake-up Indication
• Highly Integrated Device for Space Saving
• First eight registers are 16C550 compatible
• 64-byte Transmit and Receive FIFOs
• Transmit and Receive FIFO Level Counters
• Programmable TX and RX FIFO Trigger Levels
• Automatic RTS/CTS or DTR/DSR Flow Control
• Selectable Hardware Flow Control Hysteresis
• Automatic Xon/Xoff Software Flow Control with Status Indicator
• Infrared (IrDA 1.0) Data Encoder/Decoder
• Programmable Data Rate with Prescaler
• Up to 6.25 Mbps Serial Data Rate at 5V
• 100-pin QFP Package (14x20x3 mm)Application• Remote Access Servers
• Ethernet Network to Serial Ports
• Network Management
• Factory Automation and Process Control
• Point-of-Sale Systems

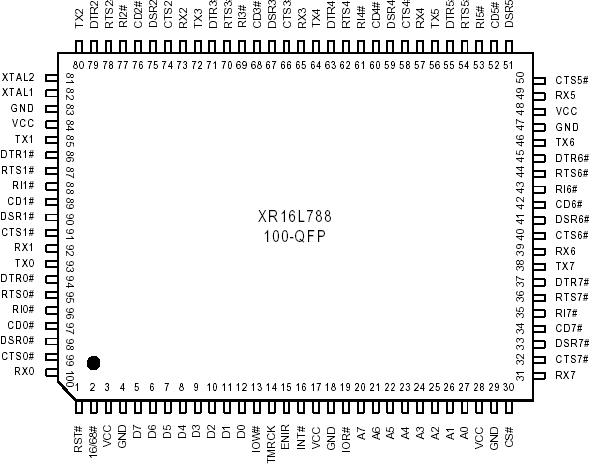

• Multi-port RS-232/RS-422/RS-485 CardsPinout
Specifications
| CH |
8 |
| CPUInterface |
Intel or Motorola |
| Data Rate@5/3.3/2.5V |
6.2/4.0/na @8X |
| Tx/RxFIFO(Bytes) |
64/64 |
| Tx/RxFIFOCtrs |
Yes |
| Tx/RxFIFOINT Trig |
Program/ Program |
| AutoRTS/CTS |
Yes |
| IrDaSup |
Yes |
| 5VTolInputs |
Yes |
| Sup V |
2.97-5.5 |
| Pkgs |
QFP-100 |
Power Supply Range 7 Volts
Voltage at Any Pin -0.5 to 7V
Operating Temperature -40o to +85
Storage Temperature -65o to +150
Package Dissipation 500 mW
Thermal Resistance (14x20x3.0mm 100-QFP) q-ja = 34/W , q-jc = 9/WDescription
Exar's XR16L788 (formerly numbered XR16L758) is a highly integrated device designed for communications systems with high bandwidth requirements in remote access servers, hubs and routers, factory automation and process control, and Point-of-Sale (POS) systems. At 3.3V (5V+ tolerant), the device is first in a new generation of devices that leverages Exar's strong serial communications design expertise, and the strong market acceptance of this product series.
Joining a robust product portfolio, the XR16L788 has several innovative features including a global interrupt output pin with global interrupt source registers that provide complete status on all eight UART channels which speeds up interrupt parsing. The global interrupt source registers are designed to make the software device drivers more efficient thus reduce CPU's bandwidth requirement in multi-channel systems.
In addition, the device has individual UART channel control, soft-reset, simultaneous registers initialization, RTS/CTS or DTR/DSR hardware flow control with 16 selectable hysteresis, software (Xon/Xoff) flow control with detection indicators and RS-485 half-duplex direction control output with programmable turn-around delay. The turn-around delay of 0 to 15 bit-time is absolutely required for compensating signal propagation delay in long cabling networks. The 8-bit data bus facility supports Intel or Motorola based system designs. The device has 64-byte transmit and receive FIFOs (first-in, first-out) as well as FIFO level counters, programmable TX and RX FIFO trigger levels, serial data rate of up to 6.25 Mbps, and Infrared (IrDA 1.0) data encoder/decoder capabilities.
For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
