Features:

•2.25V to 3.6V with 5V Tolerant Serial Inputs
•Single Interrupt output for all 8 UARTs
•A Global Interrupt Source Register for all 8 UARTs
•5G "Flat" UART Registers for easier programming•Simultaneous Initialization of all UART channels
•A General Purpose Command-driven 16-bit Timer/counter
•Sleep Mode with Wake-up Indication
•Highly Integrated Device for Space Saving
•Each UART is independently controlled with:
16C550 Compatible 5G Register Set
64-byte Transmit and Receive FIFOs
Fractional Baud Rate Generator
Transmit and Receive FIFO Level Counters
Programmable TX and RX FIFO Trigger Level
Automatic RTS/CTS or DTR/DSR Flow Control
Automatic Xon/Xoff Software Flow Control
RS485 HDX Control Output with Selectable Turn-around Delay
Infrared (IrDA 1.0) Data Encoder/Decoder
Programmable Data Rate with Prescaler





Application

•Remote Access Servers
•Ethernet Network to Serial Ports
•Network Management
•Factory Automation and Process Control
•Point-of-Sale Systems
•Multi-port RS-232/RS-422/RS-485 Cards





Pinout

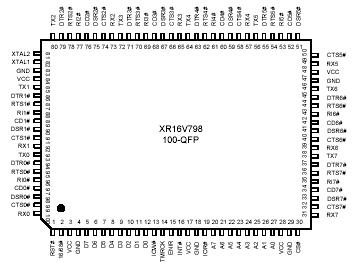

  Connection Diagram




Specifications

Specifications
CH 8
CPUInterface Intel or Motorola
Data Rate@5/3.3/2.5V na/8/6.25 @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.25-3.6
Pkgs QFP-100


Power Supply Range
Voltage at Any Pin
Operating Temperature
Storage Temperature
Package Dissipation
Thermal Resistance (14x20x3.0mm 100-QFP)
4 Volts
-0.5 to 4V
-40o to +85o C
-65o to +150o C
500 mW
-ja = 34°C/W , -jc = 9°C/W





Description



The XR16V798 (798), is a 2.25V to 3.6V octal Universal Asynchronous Receiver and Transmitter (UART) with 5V tolerant serial (modem) inputs. The highly integrated device is designed for high bandwidth requirement in communication systems. The XR16V798 global interrupt source register provides a complete interrupt status indication for all 8 channels to speed up interrupt parsing. Each UART has its own 16C550 compatible set of configuration registers, TX and RX FIFOs of 64 bytes, fully programmable transmit and receive FIFO trigger levels, TX and RX FIFO level counters, automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis, autoamtic software (Xon/Xoff) flow control, RS-485 half-duplex direction control with programmable turn-around delay, Intel or Motorola bus interface and sleep mode with a wake-up indicator.

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
