XR17D154

Features: • High Performance Quad PCI UART• Universal PCI Bus Buffers - Auto-sense 3.3V or 5V Operation• 32-bit PCI Bus 2.3 Target Signalling Compliance• A Global Interrupt Source Register for all 4 UARTs• Data Transfer in Byte, Word and Double-word• Data Read/W...

product image

XR17D154 Picture
SeekIC No. : 004549229 Detail

XR17D154: Features: • High Performance Quad PCI UART• Universal PCI Bus Buffers - Auto-sense 3.3V or 5V Operation• 32-bit PCI Bus 2.3 Target Signalling Compliance• A Global Interrupt S...

floor Price/Ceiling Price

Part Number:
XR17D154
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance Quad PCI UART
Universal PCI Bus Buffers - Auto-sense 3.3V or 5V Operation
• 32-bit PCI Bus 2.3 Target Signalling Compliance
• A Global Interrupt Source Register for all 4 UARTs
• Data Transfer in Byte, Word and Double-word
• Data Read/Write Burst Operation
• Each UART is independently controlled with:
16C550 Compatible 5G Register Set
64-byte Transmit and Receive FIFOs
Transmit and Receive FIFO Level Counters
Automatic RTS/CTS or DTR/DSR Flow Control
Automatic Xon/Xoff Software Flow Control
Automatic RS485 Half-duplex Control Output with Selectable Turn-around Delay
Infrared (IrDA 1.0) Data Encoder/Decoder
Programmable Data Rate with Prescaler
Up to 6.25 Mbps Serial Data Rate at 8X
• Eight Multi-Purpose Inputs/outputs
• General Purpose 16-bit Timer/Counter
• Sleep Mode with Automatic Wake-up
• EEPROM Interface for PCI Configuration
• Same package and pin-out as the XR17D158, XR17C158 and XR17C154 (20x20x1.4mm 144- TQFP)






Application

Universal Form Factor PCI Bus Add-in Card
• Remote Access Servers
• Ethernet Network to Serial Ports
• Network Management
• Factory Automation and Process Control
• Point-of-Sale Systems
• Multi-port RS-232/RS-422/RS-485 Cards





Pinout

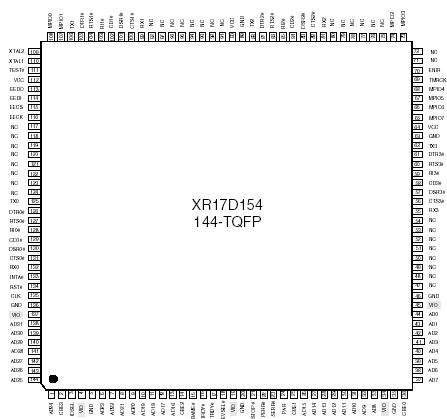

  Connection Diagram




Specifications

Power Supply Range (VCC) 7 volts
Voltage at any PCI Bus Pin-0.5 to (VIO+0.5) volts
Voltage at any non-PCI Bus Pin -0.5 to 7 volts
Operating Temperature -40o to +85
Storage Temperature -65o to +150
Package Dissipation 500 mW
Thermal Resistance (20x20x1.4mm 144-TQFP) theta-ja = 42, theta-jc = 8


Specifications
CH 4
CPUInterface PCI Bus (2.2)
Data Rate@5/3.3/2.5V 6.2/4.0/na @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
AutoRS-485 Yes
5VTolInputs Yes
Sup V 3.3, 5
Pkgs LQFP-144





Description

The XR17D1541 (D154) is a quad PCI Bus Universal Asynchronous Receiver and Transmitter (UART) with same package and pin-out as the Exar XR17D154, XR17D158 and XR17C154. The device is designed to meet today's 32-bit PCI Bus and high bandwidth requirement in communication systems. The global interrupt source register provides a complete interrupt status indication for all 4 channels to speed up interrupt parsing. Each UART is independently controlled and has its own 16C550 compatible 5G register set, transmit and receive FIFOs of 64 bytes, fully programmable transmit and receive FIFO trigger levels, transmit and receive FIFO level counters, automatic hardware flow control with programmable hysteresis, automatic software (Xon/Xoff) flow control, IrDA (Infrared Data Association) encoder/ decoder, 8 multi-purpose inputs/outputs and a 16-bit general purpose timer/counter.
NOTE: 1 Covered by U.S. Patents #5,649,122, #5,949,787
