XRD6406

Features: · 10-Bit Resolution· Sampling Rate to 6 MSPS· DNL = +1 LSB, INL = +2 LSB· Internal S/H Function· Single 5V Power Supply· VIN DC Range: 0V to VDD· VREF DC Range: 1V to VDD· Low Power: 65mW· Three-State Digital Outputs· Latch-Up Free· Pin Compatible With: MP8784Application· Digital Color C...

product image

XRD6406 Picture
SeekIC No. : 004549334 Detail

XRD6406: Features: · 10-Bit Resolution· Sampling Rate to 6 MSPS· DNL = +1 LSB, INL = +2 LSB· Internal S/H Function· Single 5V Power Supply· VIN DC Range: 0V to VDD· VREF DC Range: 1V to VDD· Low Power: 65mW·...

floor Price/Ceiling Price

Part Number:
XRD6406
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 10-Bit Resolution
· Sampling Rate to 6 MSPS
· DNL = +1 LSB, INL = +2 LSB
· Internal S/H Function
· Single 5V Power Supply
· VIN DC Range: 0V to VDD
· VREF DC Range: 1V to VDD
· Low Power: 65mW
· Three-State Digital Outputs
· Latch-Up Free
· Pin Compatible With: MP8784



Application

· Digital Color Copiers
· Precision CCDs and Scanners
· Digital Radio

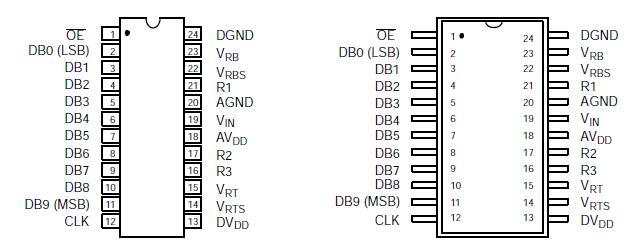

Pinout

  Connection Diagram


Specifications

AVDD to AGND . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . +7V
VRT & VRB . . . . . . . . . . . . . . . . .. . . . VDD +0.5 to GND --0.5V
VIN . . . . . . . . . . . . . . . . . . . . . .  . . . VDD +0.5 to GND --0.5V
All Inputs . . . . . . . . . . . . . . . . . . . . . VDD +0.5 to GND --0.5V
All Outputs . . . . . . . . . . . . . . . . . . . . VDD +0.5 to GND --0.5V
Storage Temperature . . . . . . . . . . . . . . .. . . --65 to +150°C
Package Power Dissipation Rating to 75°C
PDIP, SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000mW
Derates above 75°C . . . . . . . . . . . . . . . . . . . . . . 14mW/°C
Lead Temperature (Soldering 10 seconds) . . . . . . . +300°C


Notes
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100ms.
3 VDD refers to AVDD and DVDD. GND refers to AGND and DGND.
