XRD98L61

VDD to GND ............................................................+7.0V
VRT & VRB ....................................V_DD +0.5 to GND -0.5V
VIN ...............................................V_DD +0.5 to GND -0.5V
All Inputs .................................... V_DD +0.5 to GND -0.5V
All Outputs ...................................V_DD +0.5 to GND -0.5V
Storage Temperature................................. -65 to 150
Lead Temperature (Soldering 10 seconds) ..............300
Maximum Junction Temperature ...............................150
Package Power Dissipation Ratings (TA= +70)
TQFP .........................................................._JA = 105/W
ESD .........................................................................2000V
Notes:
1 Stresses above those listed as "Absolute Maximum Ratings" may cause permanent damage to the device. This is
a stress rating only and functional operation at or above this specification is not implied. Exposure to maximumrating conditions for extended periods may affect device reliability.

2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diodeclamps from input pin to the supplies. All inputs have protection diodes which will protect the device from shorttransients outside the supplies of less than 100mA for less than 100µ s.

3 VDD refers to AVDD, OVDD and DVDD. GND refers to AGND, OGND and DGND.

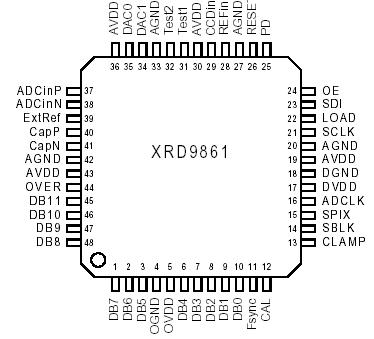

The XRD98L61 is a complete, low power CCD Image Digitizer for digital motion and still cameras. The product includes a high bandwidth differential Correlated Double Sampler (CDS), 10-bit digitally Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC), and improved digitally controlled black level auto-calibration circuitry with programmable pixel averager, hot pixel clipper and a DNS filter.

The XRD98L61 is packaged in 48-lead TQFP to reduce space and weight, and is suitable for hand-held and portable applications.
