Product Details

Description



Features:


• Fully integrated eight channel short-haul transceiversfor E1,T1 or J1 applications
• Programable Transmit Pulse Shaper for E1,T1 or J1short-haul interfaces
• Five fixed transmit pulse settings for T1 short-haulapplications plus a fully programmable waveformgenerator for transmit output pulse shaping for both
T1 and E1 modes.
• Selectable receiver sensitivity from 0 to 36dB cableloss
• Receive monitor mode handles 0 to 29dB resistiveattenuation along with 0 to 6dB of cable attenuation for E1 and 0 to 3dB of cable attenuation for T1 modes
• Supports 75W and 120W (E1), 100W (T1) and 110W (J1) applications
• Internal and/or external impedance matching for 75W, 100W, 110W and 120W
• Tri-State transmit output and receive input capability for redundancy applications
• Provides High Impedance for Tx and Rx during power off
• Transmit return loss meets or exceeds ETSI 300- 166 standard
• On-chip digital clock recovery circuit for high input jitter tolerance
• Crystal-less digital jitter attenuator with 32-bit or 64- bit FIFO selectable either in transmit or receive path
• On-chip frequency multiplier generates T1 or E1 Master clocks from variety of external clock sources
• High receiver interference immunity
• On-chip transmit short-circuit protection and limiting, and driver fail monitor output (DMO)
• Receive loss of signal (RLOS) output
• On-chip HDB3/B8ZS/AMI encoder/decoder functions
• QRSS pattern generator and detection for testing and monitoring
• Error and Bipolar Violation Insertion and Detection
• Receiver Line Attenuation Indication Output in 1dB
steps
• Network Loop-Code Detection for automatic Loop-
Back Activation/Deactivation
• Transmit All Ones (TAOS) and In-Band Network
Loop Up and Down code generators
• Supports Local Analog, Remote, Digital and Dual
Loop-Back Modes
• Meets or exceeds T1 and E1 short-haul network
access specifications in ITU G.703, G.775, G.736






Application

• T1 Digital Cross-Connects (DSX-1)
• ISDN Primary Rate Interface
• CSU/DSU E1/T1/J1 Interface
• T1/E1/J1 LAN/WAN Routers
• Public switching Systems and PBX Interfaces
• T1/E1/J1 Multiplexer and Channel Banks





Pinout

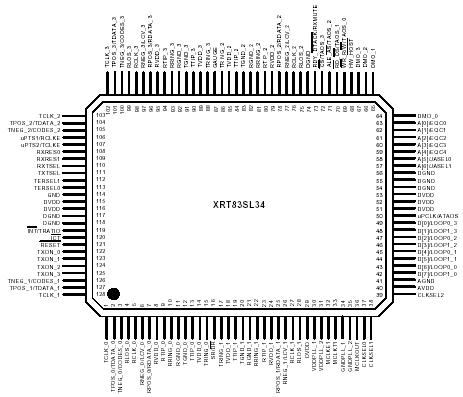

  Connection Diagram




Specifications

Specifications
No. ofCH 4
DataRate(s) T1/E1/J1
Clk Rec Yes
SH/LH S
Temp.Range Ind.
OpPwr Sup/Max Cur 3.3V ±5%, TBD
Pkgs TQFP-128





Description

The XRT83SL34 is a fully integrated Quad (four channel) short-haul line interface unit for T1
(1.544Mbps) 100W, E1 (2.048Mbps) 75W or 120W, or J1 110W applications. In T1 applications, the XRT83SL34 can generate five transmit pulse shapes to meet the short-haul Digital Cross-Connect (DSX-1) template requirements. It also provides programmable transmit pulse generators for each channel that can be used for output pulse shaping allowing performance improvement over a wide variety of conditions.

The XRT83SL34 provides both a parallel Host microprocessor interface as well as a Hardware mode for programming and control. Both the B8ZS and HDB3 encoding and decoding functions are selectable as well as AMI. An on-chip crystal-less jitter attenuator with a 32 or 64 bit FIFO can be placed either in the receive or the transmit path with loop bandwidths of less than 3Hz.

The XRT83SL34 provides a variety of loop-back and diagnostic features as well as transmit driver short circuit detection and receive loss of signal monitoring. It supports internal impedance matching for 75W 100W, 110W and 120W for both transmitter and receiver. In the absence of the power supply, the transmit outputs and receive inputs are tri-stated allowing for redundancy applications The chip includes an integrated programmable clock multiplier that can synthesize T1 or E1 master clocks from a variety of external clock sources.



Description

Joining Exar's proven and extensive T1/E1 XRT83SL34 device family, the company adds hree new products. A single-channel XRT83SL30, a quad (four-channel) XRT83SL34, and octal (eight-channel) XRT83SL38. These devices are ideal for the high andwidth needs from the backbone or Core to the Metro Area Network. OEM roducts for this technology include Multi-Service Provisioning Platforms (MSPP), access devices, media gateways, routers frame relay access devices, and ireless base stations.

What is R3 TechnologyTM?

Exar's R3 TechnologyTM Reconfigurable, Relayless Redundancy) delivers key innovative features to customers designing T1/E1/J1 interface cards. The  XRT83SL34 devices are Reconfigurable -- integrated termination supporting all common T1/E1/J1 line impedances (75-120 ohms) enabling customers to build boards with a single bill-of-materials. Exar's on-board reconfigurable clock synthesizer allows manufacturers to build hardware in advance and configure the product (in software) for the particular application or market at the time of shipment. Conventional approaches require fixed settings - T1, or E1, or J1, forcing customers to determine device settings before manufacturing, and carry all configurations in inventory even if they are not immediately required. Also, the series employs Relayless Redundancy eliminating the need for external relays for 1:1 and 1+1 applications by establishing a back-up channel that is brought on-line in event of failure.

Product Highlights

The XRT83SL34 devices support all international (North America, Europe, or Japan) line impedances at 75, 100, 110, and 120-ohms. The XRT83SL8X series has a frequency synthesizer that can take a number of different clocks and generate either a 1.544 MHz clock for T1/J1, or 2.048 MHz for E1. The devices meet, or exceed popular etworking specifications ITU G.703, G.775, and ANSI T1.402. In addition, the devices support the Bellcore GR-499 core and ANSI T1.402. Also, they have a low jitter, on-chip frequency multiplier that provides the necessary clocks to the chip. The master clock that feeds the multiplier can be T1, E1, or lower rates that are frequently available on a board such as 8, 16, 56, 64, 128 and 256kHz.

Other features of the XRT83SL34 family include a parallel microprocessor bus supporting both synchronous and asynchronous microprocessor interfaces for Motorola, Intel and MIPS processors, a crystal-less jitter attenuator that can be switched into either the transmit or receive path, and a quasi random signal synthesizer/detector for support bit error rate testing.
