Features:

`18-Pin DIP and SOIC Packages
`0 to 70 Standard Temperature
  40 to 105 Extended Temperature (Z86C02/E02 only)
`3.0V to 5.5V Operating Range (Z86C02)
  4.5V to 5.5V Operating Range (Z86E02)
  2.0V to 3.9V Operating Range (Z86L02)
`14 Input / Output Lines
`Five Vectored, Prioritized Interrupts from Five Different Sources
`Two On-Board Comparators
`Software Enabled Watch-Dog Timer (WDT)
`Programmable Interrupt Polarity
`Two Standby Modes: STOP and HALT
`Low-Voltage Protection
`ROM Mask/OTP Options:
  Low-Noise (Z86C02/E02 only)
  ROM Protect
  Auto Latch
  Permanent Watch-Dog Timer (WDT)
  RC Oscillator (Z86C02/L02 Only)
  32 KHz Operation (Z86C02/L02 Only)
`One Programmable 8-Bit Counter/Timer with a 6-Bit Programmable Prescaler
`Power-On Reset (POR) Timer
`On-Chip Oscillator that Accepts RC, Crystal, Ceramic Resonator, LC, or External Clock Drive (C02/L02 only)
`On-Chip Oscillator that Accepts RC or External Clock Drive (Z86E02 SL1903 only)
`On-Chip Oscillator that Accepts Crystal, Ceramic Resonator, LC, or External Clock Drive (Z86E02 only)
`Clock-Free WDT Reset
`Low-Power Consumption (50mw)
`Fast Instruction Pointer (1.5ms @ 8 MHz)
`Fourteen Digital Inputs at CMOS Levels; Schmitt-Triggered


Pinout

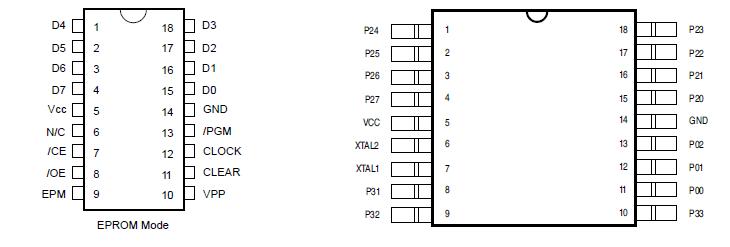

Connection Diagram Connection Diagram


Specifications

Parameter Min Max Unit
Ambient Temperature under Bias 40 +105 C
Storage Temperature 65 +150 C
Voltage on any Pin with Respect to VSS [Note 1] 0.7 +12 V
Voltage on VDD Pin with Respect to VSS 0.3 +7 V
Voltage on Pin 7 with Respect to VSS [Note 2] (Z86C02/L02) 0.7 VDD+1 V
Voltage on Pin 7,8,9,10 with Respect to VSS [Note 2] (Z86E02) 0.7 VDD+1 V
Total Power Dissipation   462 mW
Maximum Allowed Current out of VSS   300 mA
Maximum Allowed Current into VDD   270 mA
Maximum Allowed Current into an Input Pin [Note 3] 600 +600 A
Maximum Allowed Current into an Open-Drain Pin [Note 4] 600 +600 A
Maximum Allowed Output Current Sinked by Any I/O Pin   20 mA
Maximum Allowed Output Current Sourced by Any I/O Pin   20 mA
Maximum Allowed Output Current Sinked by Port 2, Port 0   80 mA
Maximum Allowed Output Current Sourced by Port 2, Port 0   80 mA



Description

Zilog's Z86C02/E02/L02 microcontrollers (MCUs) are members of the Z8® single-chip MCU family, which offer easy software/hardware system expansion.

For applications of Z86C02/E02/L02  demanding powerful I/O capabilities, the MCU's dedicated input and output lines are grouped into three ports, and are configurable under software control to provide timing, status signals, or parallel I/O.One on-chip counter/timer, with a large number of user-selectable modes, off-load the system of administering realtime tasks such as counting/timing and I/O data communi-cations. Additionally, two on-board comparators process analog signals with a common reference voltage (Figure 1).
