ZL30402

Features: • Meets requirements of GR-253 for SONET stratum 3 and SONET Minimum Clocks (SMC)• Meets requirements of GR-1244 for stratum 3• Meets requirements of G.813 Option 1 and 2 for SDH Equipment Clocks (SEC)• Generates clocks for ST-BUS, DS1, DS2, DS3, OC-3, E1, E2, E3,...

product image

ZL30402 Picture
SeekIC No. : 004550959 Detail

ZL30402: Features: • Meets requirements of GR-253 for SONET stratum 3 and SONET Minimum Clocks (SMC)• Meets requirements of GR-1244 for stratum 3• Meets requirements of G.813 Option 1 and 2...

floor Price/Ceiling Price

Part Number:
ZL30402
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Meets requirements of GR-253 for SONET stratum 3 and SONET Minimum Clocks (SMC)
• Meets requirements of GR-1244 for stratum 3
• Meets requirements of G.813 Option 1 and 2 for SDH Equipment Clocks (SEC)
• Generates clocks for ST-BUS, DS1, DS2, DS3, OC-3, E1, E2, E3, STM-1 and 19.44 MHz
• Holdover accuracy to 1x10 -12 meets GR-1244 Stratum 3E and ITU-T G.812 requirements
• Continuously monitors Primary and Secondary reference clocks
• Provides "hit-less" reference switching
• Compensates for Master Clock Oscillator accuracy
• Detects frequency of both reference clocks and synchronizes to any combination of 8 kHz, 1.544 MHz, 2.048 MHz and 19.44 MHz reference frequencies.
• Allows Hardware or Microprocessor control
• Pin compatible with MT90401 device.




Application

• Synchronization for SDH and SONET Network Elements
• Clock generation for ST-BUS and GCI backplanes



Pinout

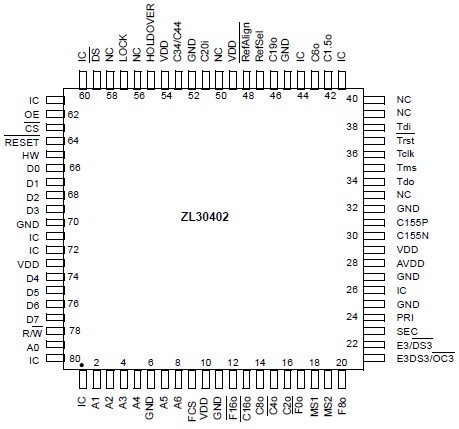

  Connection Diagram


Specifications

  Parameter Symbol Min. Max. UNIT
1 Supply voltage VDDR -0.3 7.0 V
2 Voltage on any pin VPIN -0.3 VDD+0.3 V
3 Current on any pin IPIN   30 mA
4 Storage temperature TST -55 125
5 Package power dissipation (80 pin LQFP) PPD   1000 mW
6 ESD rating VESD   1500 V

* Voltages are with respect to ground (GND) unless otherwise stated
* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.



Description

The ZL30402 is a Network Element Phase-Locked Loop designed to synchronize SDH and SONET systems. In addition, it generates multiple clocks for legacy PDH equipment and provides timing for ST-BUS and GCI backplanes.

The ZL30402 operates in NORMAL (LOCKED), HOLDOVER and FREE-RUN modes to ensure that in the presence of jitter, wander and interruptions to the reference signals, the generated clocks meet international standards. The filtering characteristics of the PLL are hardware or software selectable and they do not require any external adjustable components.  The ZL30402 uses an external 20 MHz Master Clock Oscillator to provide a stable timing source for the HOLDOVER operation.

The ZL30402 operates from a single 3.3 V power supply and
