ZXBM1004

Features: • Compliant with external PWM speed control• Compliant with thermistor control• Minimum speed setting• Low noise• Auto restart• Built in hall amplifier• Speed pulse (FG) and lock rotor (RD) outputs• Up to 18V input voltage (60V with externa...

product image

ZXBM1004 Picture
See larger image
SeekIC No. : 004552322 Detail

ZXBM1004: Features: • Compliant with external PWM speed control• Compliant with thermistor control• Minimum speed setting• Low noise• Auto restart• Built in hall amplifier&...

ZXBM1004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZXBM1004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compliant with external PWM speed control
• Compliant with thermistor control
• Minimum speed setting
• Low noise
• Auto restart
• Built in hall amplifier
• Speed pulse (FG) and lock rotor (RD) outputs
• Up to 18V input voltage (60V with external regulator)
• QSOP16 package




Application

• Mainframe and personal computer fans and blowers
• Instrumentation fans
• Central heating blowers
• Automotive climate control




Pinout

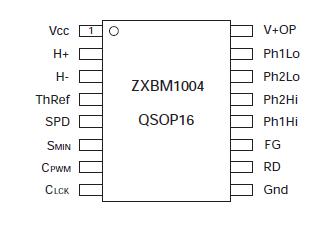

Connection Diagram




Specifications

Part Number ZXBM1004
# Phase Drive 1
Min. Supply Voltage (V) 4.7
Max. Supply Voltage (V) 18
Max. Quiescent Current (mA) 8.5
ThREF Output (V) 3
Speed Control Yes
Min. Speed Setting Yes
Current Limit -
Tail End Current Control -
Locked Rotor Error Flag (RD) Yes
Speed Detect Flag (FG) Yes
Output Flag Format Open Collector





Description

The ZXBM1004 is a single-phase, DC brushless motor pre-driver with PWM variable speed control suitable for fan and blower motors. The controller is intended for applications where the fan or blower speed is controlled by an external PWM signal, thermistor or DC voltage.
