Features:

•High-speed, low-power version of V40 and V50
•High-performance CPU (V20^TM/V30^TM software compatible)
•Minimum instruction execution time:100 ns (20 MHz, 5 V)
                                                           200 ns (10 MHz, 3 V)
•Memory addressing space: 1M bytes
•High-speed multiply/divide instructions: 0.95 to 2.8 µs (20 MHz, 5 V)
                                                                  1.9 to 5.6 µs (10 MHz, 3 V)
•Maskable (ICU) & non-maskable (NMI) interrupt inputs
•µPD8080AF emulation function
•Standby functions, clock stoppage capability
•Standard peripheral LSI functions on chip
•Clock generator (CG)
•Programmable wait control unit (WCU)
•Refresh control unit (REFU)
•Timer/counter unit (TCU)     ··· µPD71054 subset
•Serial control unit (SCU)      ··· µPD71051 subset
•Interrupt control unit (ICU) ··· µPD71059 subset
•DMA control unit (DMAU)     ··· µPD71071/71037 subset (functions of either selectable)
•Operating frequency: 10/12.5/16/20 MHz (at 5 V, with 20/25/32/40 MHz supplied externally)
                                     5/6.25/8/10 MHz (at 3 V, with 10/12.5/16/20 MHz supplied externally)

Pinout

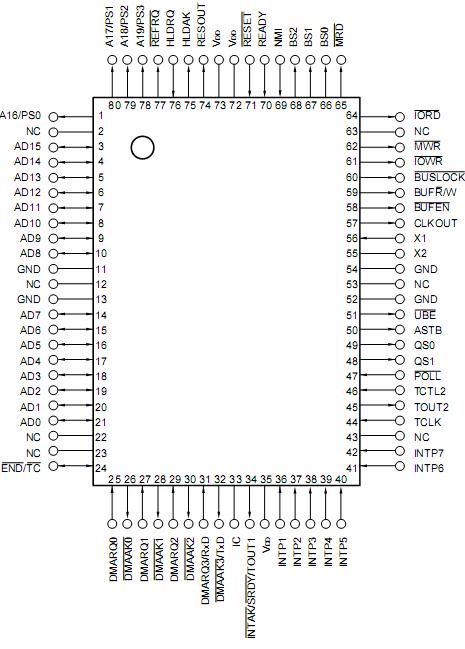

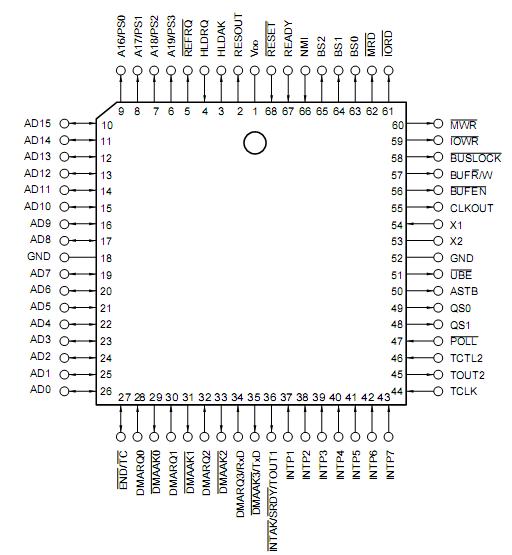

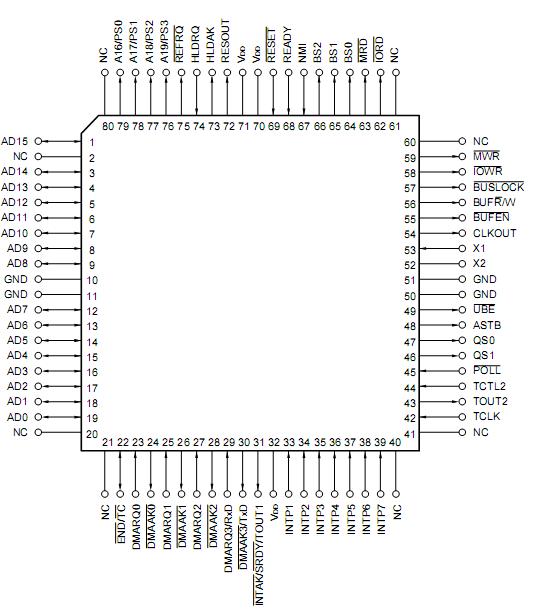

Connection Diagram

Specifications

Parameter	Symbol	Test Conditions	Rating	Unit
Supply voltage	V_DD		0.5 to +7.0	V
Input voltage	V_I	V_DD = 5 V ±10% (µPD70208H, 702110/12/16) V_DD= 5 V ±5% (µPD70208H, 70216H-20)	0.5 to VDD+ 0.3	V
Clock input voltage	V_K		0.5 to VDD+ 1.0	V
Output voltage	V_O		0.5 to VDD+ 0.3	V
Operating ambient temperature	T_A		40 to +85	°C
Storage temperature	T_stg		65 to +150	°C

Parameter	Symbol	Test Conditions	Rating	Unit
Supply voltage	V_DD		0.5 to +7.0	V
Input voltage	V_I	V_DD = 3 V ±10%	0.5 to V_DD+0.3	V
Clock input voltage	V_K		0.5 to V_DD+ 1.0	V
Output voltage	V_O		0.5 to V_DD+ 0.3	V
Operating ambient temperature	T_A		40 to +85	°C
Storage temperature	T_stg		65 to +150	°C

Description

The 70216H is a high-speed, low-power 16-/8-bit microprocessor based on the µPD70208 (V40TM) with 16-bit architecture, 8-bit data bus, and general-purpose peripheral functions.

The 70216H offer 20 MHz operation, and in addition to the conventional standby functions,also allows the clock to be stopped by the use of fully static internal circuitry, thus achieving greatly reduced power consumption. The 70216H is alsocapable of 3 V operation in addition to the previous 5 V operation, making it ideally suited to battery driven systems.Details are given in the following manuals. Be sure to read when carrying out design work.
• V40HL, V50HL User's Manual Hardware (U11610E)
• 16-bit V seriesTM User's Manual Instruction (U11301J: Japanese version)
