PT7A6632

Features: •Provides up to 32 full-duplex HDLC/SDLC channels•Compatible with 1.544 Mb/s T1 and 2.048Mb/s CEPT PCM-30 carrier format•Provides on-board buffer memory management•Supports standard hyperchannel configuration and fully programmable hyperchannel configuration•...

product image

PT7A6632 Picture
See larger image
SeekIC No. : 004466610 Detail

PT7A6632: Features: •Provides up to 32 full-duplex HDLC/SDLC channels•Compatible with 1.544 Mb/s T1 and 2.048Mb/s CEPT PCM-30 carrier format•Provides on-board buffer memory management•...

PT7A6632 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT7A6632
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Provides up to 32 full-duplex HDLC/SDLC channels
•Compatible with 1.544 Mb/s T1 and 2.048Mb/s CEPT PCM-30 carrier format
•Provides on-board buffer memory management
•Supports standard hyperchannel configuration and fully programmable hyperchannel configuration
•Provides on-board CRC-16, automatic flag and zero insertion and deletion functions in HDLC format
•Provides programmable tri-state outputs to T1/E1 serial interface and FILL/MASK, thus enabling up to 8 devicesconnecting to a TDM bus
•Provides data rate adaptation functions
•Compatible with HDLC, SNA SDLC, X.25, X.75,LAPB, and LAPD protocols
•Support non-HDLC signaling channels
•Single +5V power supply
•Package: 68-pin PLCC


Application

•Primary rate interfaces
•Basic-rate D-channel controller
•Multi-channel HDLC interfaces


Pinout

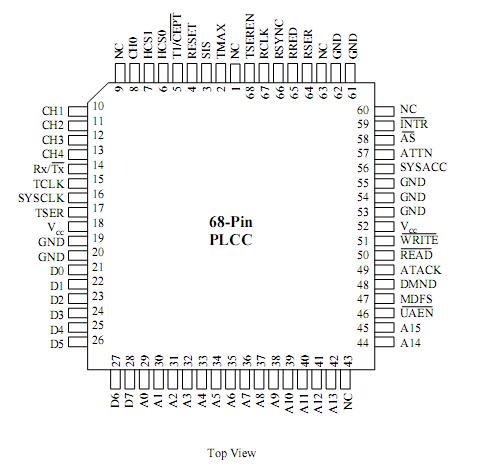

Connection Diagram


Specifications

Storage Temperature......................................................-65 to +150
Ambient Temperature with Power Applied........................-40 to +85
Supply Voltage to Ground Potential (Inputs & VCC  Only).....-0.3 to 7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only)...-0.3 to 7.0V
DC Input Voltage..................................................................-0.3 to 7.0V
DC Output Current......................................................................120mA
Power Dissipation..............................................................................2W


Description

The PT7A6632 HDLC Controller is applied between an exter-nal memory and T1/E1 trunk interface to perform data trans-mission and reception. See Figure 1. Its signal attributes are shown in Figure 4.

PT7A6632 reads the data to be transmitted from the external memory in 8-bit parallel way, formats them and adapts data rate, then transmits the data to the T1/E1 trunk interface.

PT7A6632 receives serial data from the T1/E1 trunk interface,deformats them and adapts data rate, then stores the data into the external memory.

The channel operation modes are set up in the external memory by CPU. PT7A6632 reads the commands from the external memory and process data channel by channel, totally 64 chan-nels (32 for transmission and 32 for receive). Each channel mode can be set up in external memory independently by CPU.
