Product Details

Description

Features:

• Red Colored transparency lens type
• 3mm(T-1) all plastic mold type
• Wide viewing angle
• Low power consumption

Pinout

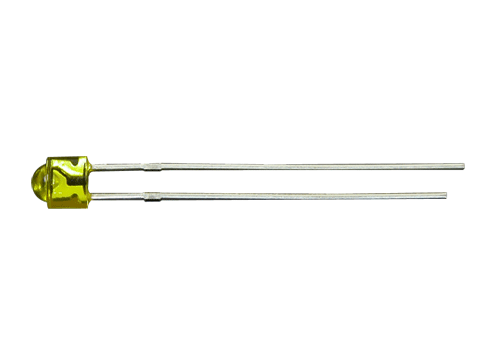

Connection Diagram

Specifications

Characteristic	Symbol	Ratings	Unit
Power Dissipation	P_D	85	mW
Forward Current	I_F	30	mA
*¹Peak Forward Current	I_FP	50	mA
Reverse Voltage	V_R	4	V
Operating Temperature	T_opr	-25∼85
Storage Temperature	T_stg	-30∼100
*²Soldering Temperature	T_sol	260 for 5 seconds

*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package

Description

This SA3418(B) lamp is used as a indigator for the Electric home appliance. - Refrigerator, Washing machine, Air conditioner & Humidifier, Audio, VTR, Television, Computer, Vending machine, etcs. SA3418(B) has been also used as a light source at the lighting fixtures.
