Product Details

Description



Pinout

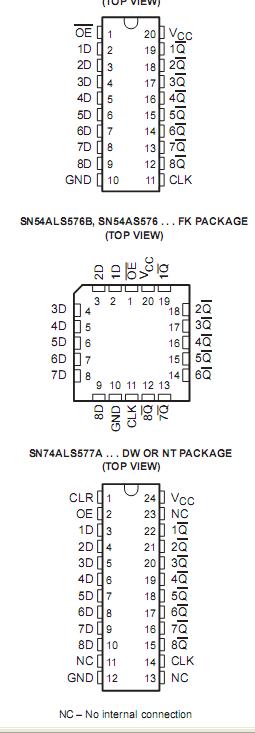

Connection Diagram


Specifications

Supply voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... . . . . . .  7 V
Input voltage, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... ..... 7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . ...................... . .  5.5 V
Operating free-air temperature range, TA:SN54ALS576B.........................  55°C to 125°C
                                                                  SN74ALS576B, SN74ALS577A  . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .....  65°C to 150°C



Description

These octal D-type edge-triggered flip-flops feature 3-state outputs designed specifically for bus driving. SN54ALS576B and SN54AS576 are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

These flip-flops of SN54ALS576B and SN54AS576 enter data on the low-to-high transition of the clock (CLK) input.

The output-enable (OE</a> ) input does not affect internal operations of the flip-flops. Old data of SN54ALS576B and SN54AS576 can be retained or new data can be entered while the outputs are disabled.

The SN54ALS576B and SN54AS576 are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS576B, SN74ALS577A, and SN74AS576 are characterized for operation from 0°C to 70°C.
