SN74AS874

Features: 3-State Buffer-Type Outputs Drive Bus Lines Directly Bus-Structured Pinout Choice of True or Inverting Logic SN54ALS874B, SN74ALS874B, SN74AS874 Have True Outputs SN74ALS876A, SN74AS876 Have Inverting Outputs Asynchronous Clear Package Options Include Plastic Small-Outline (DW) Packag...

product image

SN74AS874 Picture
See larger image
SeekIC No. : 004498452 Detail

SN74AS874: Features: 3-State Buffer-Type Outputs Drive Bus Lines Directly Bus-Structured Pinout Choice of True or Inverting Logic SN54ALS874B, SN74ALS874B, SN74AS874 Have True Outputs SN74ALS876A, SN74AS876...

SN74AS874 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AS874
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3-State Buffer-Type Outputs Drive Bus
     Lines Directly
  Bus-Structured Pinout
  Choice of True or Inverting Logic
    SN54ALS874B, SN74ALS874B,
       SN74AS874 Have True Outputs
    SN74ALS876A, SN74AS876 Have
       Inverting Outputs
   Asynchronous Clear
   Package Options Include Plastic
      Small-Outline (DW) Packages, Plastic (FN)
      and Ceramic (FK) Chip Carriers, and
      Standard Plastic (NT) and Ceramic (JT)
      300-mil DIPs


Pinout

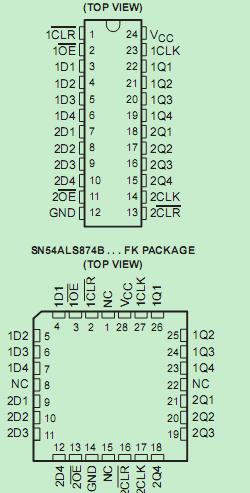

Connection Diagram Connection Diagram


Specifications

Supply voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  .7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  5.5 V
Operating free-air temperature range, TA:SN54ALS874B. . . . . . . . . . . . . . . . . . . . . . . .  55°C to 125°C
                                     SN74ALS874B, SN74ALS876A  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
                                      Storage temperature range . . . . . . . . . . . . . . . . .  . . . . . . . . . . 65°C to 150°C



Description

These SN74AS874 dual 4-bit D-type edge-triggered flip-flops feature 3-state outputs designed specifically as bus drivers. They are particularly suitable for
implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

The SN74AS874 edge-triggered flip-flops enter data on the low-to-high transition of the clock (CLK) input.

The SN54ALS874B, SN74ALS874B, and SN74AS874 have clear (CLR  inputs and noninverting Q outputs. The SN74ALS876A and SN74AS876 have preset (PRE ) inputs andinverting Q outputs; taking PRE  low causes the  four Q  or Qoutputs to go low independently of the clock.

The SN54ALS874B is characterized for operation over the full military temperature range of 55°Cto 125°C. The SN74ALS874B, SN74ALS876A,
SN74AS874, and SN74AS876devices are characterized for operation from 0°C to 70°C.
