SP6645

Features: 90mA Output Current at 1.3V Input 190mA Output Current at 2.6V Input +2V to +5.5V Output Range 0.88V Guaranteed Start-Up 92% High Efficiency 1.6µA Quiescent Supply Current at VBATT Reverse Battery Protection Internal Synchronous Rectifier 5nA Logic Controlled Shutdown Current From...

product image

SP6645 Picture
See larger image
SeekIC No. : 004500571 Detail

SP6645: Features: 90mA Output Current at 1.3V Input 190mA Output Current at 2.6V Input +2V to +5.5V Output Range 0.88V Guaranteed Start-Up 92% High Efficiency 1.6µA Quiescent Supply Current at VBATT ...

SP6645 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP6645
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

90mA Output Current at 1.3V Input
190mA Output Current at 2.6V Input
+2V to +5.5V Output Range
0.88V Guaranteed Start-Up
92% High Efficiency
1.6µA Quiescent Supply Current at VBATT
Reverse Battery Protection
Internal Synchronous Rectifier
5nA Logic Controlled Shutdown Current From VBATT
Low-Battery Detection Active LOW Output
Small 8 Pin MSOP Package
Flexibility to Optimize Inductor Type with Programmable Peak Current Control
No External FETs


Pinout

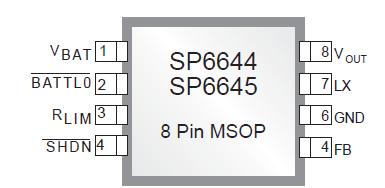

Connection Diagram


Specifications

VBATT to GND.......................................................-0.3 to 6.0V
VOUT to GND........................................................-0.3 to 6.0V
LX, SHDN, FB, BATTLO, to GND............................-0.3 to 6.0V
Reverse battery Current, TAMB=+25°C.......................220mA
(NOTE 1)
VBATT forward current......................................................0.5A
VOUT, LX current................................................................1A
Storage Temperature Range......................-65°C to +165°C
Lead Temperature (soldering 10s)............................+300°C
Operating Temperature.................................-40°C to +85°C
Power Dissipation Per Package
8-pin µSOIC (derate 4.85mW/OC above +70OC)..........390mW


Description

The SP6644/6645 devices are high-efficiency, low-power step-up DC-DC converters ideal for single or dual alkaline cell applications such as pagers, remote controls, pointing devices, medical monitors, and other low-power portable end products. Designers can control the SP6644 device with an active LOW shutdown input. The SP6644 device features an active low output for batteries below +1.0V. The SP6645 device features an active low output for batteries below +2.0V. Both devices contain a 0.8 synchronous rectifier, a 0.5 N-channel MOSFET power switch, an internal voltage reference, circuitry for pulsefrequency- modulation, and an under voltage comparator. The output voltage for the SP6644/6645 devices is preset to +3.3V + 4% or can be adjusted from +2V to +5.5V by manipulating two external resistors
