ST7SUPERLITE

Features: ·ICP (In-Circuit Programming)·IAP (In-Application Programming)· ICT (In-Circuit Testing) for downloading and executing user application test patterns in RAM· Sector 0 size configurable by option byte· Read-out and write protection· Up to 32 Bytes programmed in the same cycle· EEPROM mono...

product image

ST7SUPERLITE Picture
See larger image
SeekIC No. : 004506862 Detail

ST7SUPERLITE: Features: ·ICP (In-Circuit Programming)·IAP (In-Application Programming)· ICT (In-Circuit Testing) for downloading and executing user application test patterns in RAM· Sector 0 size configurable by ...

ST7SUPERLITE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST7SUPERLITE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·ICP (In-Circuit Programming)
·IAP (In-Application Programming)
· ICT (In-Circuit Testing) for downloading and executing user application test patterns in RAM
· Sector 0 size configurable by option byte
· Read-out and write protection
· Up to 32 Bytes programmed in the same cycle
· EEPROM mono-voltage (charge pump)
· Chained erase and programming cycles
· Internal control of the global programming cycle duration
· WAIT mode management
· Readout protection
· 63 basic instructions
· Fast 8-bit by 8-bit multiply
· 17 main addressing modes
· Two 8-bit index registers
· 16-bit stack pointer
· Low power modes
· Maskable hardware interrupts
· Non-maskable software interrupt


Pinout

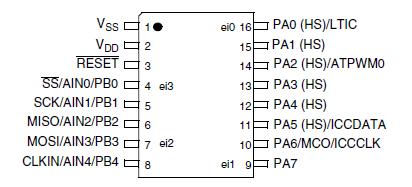

Connection Diagram


Specifications

VDD - VSS    Supply voltage ...............................7.0V
VIN              Input voltage on any pin 1) & 2)...... VSS-0.3 to VDD+0.3V
VESD(HBM)   Electrostatic discharge voltage (Human Body Model) ...see section 13.7.2 on page 93


Description

In-Circuit Programming of ST7SUPERLITEs configured with Hardware Watchdog (WDGSW bit in option byte 1 programmed to 0) requires certain precautions (see below).

In-Circuit Programming uses ST7SUPERLITE mode. In this mode, the Hardware Watchdog is not automatically deactivated as one might expect. As a consequence, internal resets are generated every 2 ms by the watchdog, thus preventing programming.

The ST7SUPERLITE factory configuration is Software Watchdog so this issue is not seen with devices that are programmed for the first time. For the same reason, devices programmed by the user with the Software Watchdog option are not impacted.

The only ST7SUPERLITE impacted are those that have previously been programmed with the Hardware Watchdog option.
