Product Details

Description



Pinout

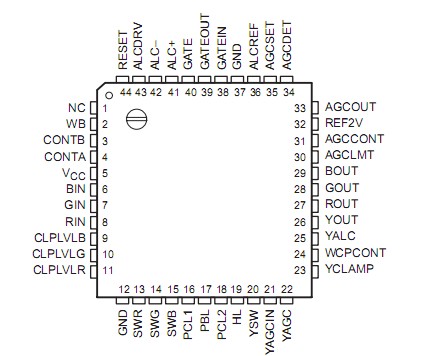

Connection Diagram


Specifications

Supply voltage, VCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8 V
Input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .8 V
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25°C to 75°C
Storage temperature range   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 40°C to 125°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to the GND terminal.


Description

The TL1051 is a bipolar monolithic integrated circuit designed for use in preprocessing three channels of TI CCD image sensors. It receives video inputs from the TI TL1593 three-channel sample-and-hold circuit and outputs three processed channel signals and a single multiplexed Y (luminance) signal. Processing functions of the TL1051 include gain, automatic gain control, clamp, white balance, and white clip.

The TL1051 is supplied in a 44-pin surface-mount plastic package and is characterized for operation from 20°C to 45°C.
