eKM8050

Features: 􀁹 Universal Serial Bus Specification, version 1.1􀁹 USB HID Specification, version 1.1􀁹 Auto-detecting PS/2 port or USB port.􀁹 Compatible with Microsoft 3D PS/2 mouse.􀁹 Support 3D (X,Y,Z) 3 Key (L,R,M) input.􀁹 Support Z/2 mechanical, Z...

product image

eKM8050 Picture
See larger image
SeekIC No. : 004335018 Detail

eKM8050: Features: 􀁹 Universal Serial Bus Specification, version 1.1􀁹 USB HID Specification, version 1.1􀁹 Auto-detecting PS/2 port or USB port.􀁹 Compatible with Microsoft ...

eKM8050 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
eKM8050
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁹 Universal Serial Bus Specification, version 1.1
􀁹 USB HID Specification, version 1.1
􀁹 Auto-detecting PS/2 port or USB port.
􀁹 Compatible with Microsoft 3D PS/2 mouse.
􀁹 Support 3D (X,Y,Z) 3 Key (L,R,M) input.
􀁹 Support Z/2 mechanical, Z/2 Photo, and Z/4 Photo(eKM8050B) Z-axis input type.
􀁹 Support Agilent HDNS-2051 & 2610 & 2620 Optical Mouse Sensor.
􀁹 Applications 3D, 3 Buttons USB and PS/2 Combo Mouse.


Pinout

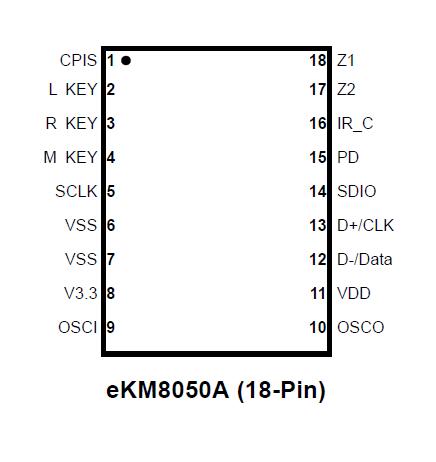

Connection Diagram


Specifications

Symbol
min

 Max unit
Temperature under bias


 0 70 ºC
Storage temperature


 -65 150 ºC
Input voltage


 -0.5 6.0 V
Output voltage


 -0.5 6.0 V



Description

The eKM8050 is a Mouse Controller designed to control both USB & PS/2 Optical Mouse device. This Mouse Controller can auto detect USB or PS/2 mode, and supports X,Y,Z three axes , and
L, R, M three buttons under both USB and PS2 mode.
