xc6204

Features: Maximum Output Current :150mADropout Voltage :200mV (IOUT= 100mA)Maximum Operating Voltage :10VOutput Voltage Range :1.8V ~ 6.0V in 50mV incrementsHighly Accurate :±2% Low Power Consumption :TYP 70µA Standby Current :less than 0.1µA High Ripple Rejection:70dB (10 kHz) Low Ou...

product image

xc6204 Picture
See larger image
SeekIC No. : 004547922 Detail

xc6204: Features: Maximum Output Current :150mADropout Voltage :200mV (IOUT= 100mA)Maximum Operating Voltage :10VOutput Voltage Range :1.8V ~ 6.0V in 50mV incrementsHighly Accurate :±2% Low Power Consumptio...

xc6204 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
xc6204
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Maximum Output Current                   :150mA
Dropout Voltage                                 :200mV  (IOUT= 100mA)
Maximum Operating Voltage              :10V
Output Voltage Range                        :1.8V ~ 6.0V in 50mV increments
Highly Accurate                                   :±2%
Low Power Consumption                    :TYP 70µA
Standby Current                                 :less than 0.1µA
High Ripple Rejection                          :70dB (10 kHz)
Low Output Noise                               :30µVrms
Operational Temperature Range         :-40°C ~ +85°C
Low ESR Capacitor Compatible            :Ceramic capacitor



Application

Mobile phones

Cordless phones

Cameras, video recorders

Portable games

Portable AV equipment

Reference voltage

Battery powered equipment




Pinout

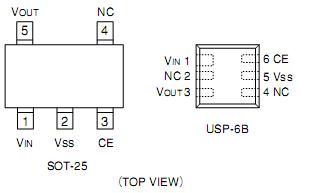

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS
 UNITS
Input Voltage VIN 12 V
Output Current IOUT 500 mA
Output Voltage VOUT VSS-0.3~VIN+0.3 V
CE lnput Voltage VCE VSS-0.3~VIN+0.3 V
Power Dissipation SOT-25 Pd 250 mW
USP-6B 100
Operational Ambient Temperature Topr -40~+85
Storage Temperature Tstg -55~+125



Description

The XC6204 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The XC6204 series achieveshigh ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensationcircuit plus a driver transistor.Output voltage is selectable in 50mV increments within a range of 1.8V ~6.0V.The XC6204 series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series.
