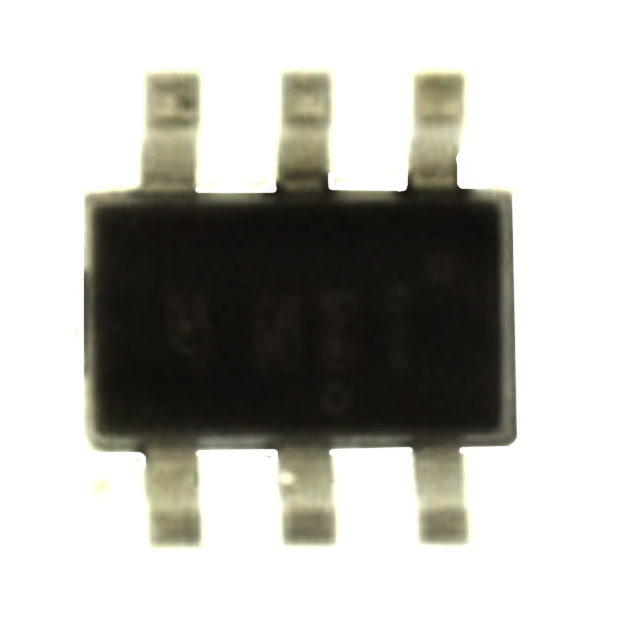

Part Number: 2N7002DW

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: SOT-23

D/C: 2005

Description: MOSFET N-CH 60V 115MA SC70-6

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

2N7002DW Parameters

Technical/Catalog Information	2N7002DW
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	115mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	200mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	-
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N7002DW 2N7002DW 2N7002DWDKR ND 2N7002DWDKRND 2N7002DWDKR

2N7002DW Maximum Ratings

Part Number	2N7002DW
Config/ Polarity	2 x N
P_D (W)	0.2
V_DSS (V)	60
V_GSS(+/-) (V)	20
I_D (A)	0.115
R_{DS(on) Max}(Ω) @ V_GS; 1.8V
R_{DS(on) Max}(Ω) @ V_GS; 2.5V
R_{DS(on) Max}(Ω) @ V_GS; 4.0V
R_{DS(on) Max}(Ω) @ V_GS; 4.5V
R_{DS(on) Max}(Ω) @ V_GS; 5V	7.5
R_{DS(on) Max}(Ω) @ V_GS; 10.0V
V_GS(th) (V)	2
C_iss (typ) (pF)	50
Qg (typ) (nC) @ V_GS;4.5V
Qg (typ) (nC) @ V_GS;5V
Qg (typ) (nC) @ V_GS;10V

2N7002DW Features

Dual N-Channel MOSFET
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Ultra-Small Surface Mount Package
