2N7002V, 2N7002V-7, 2N7002VA

Table of contents:
Info of 2N7002V
Info of 2N7002V-7
Info of 2N7002VA

2N7002V, 2N7002V-7, 2N7002VA Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SC89 D/C:2010+

2N7002V, 2N7002V-7, 2N7002VA Datasheet download

Five Points

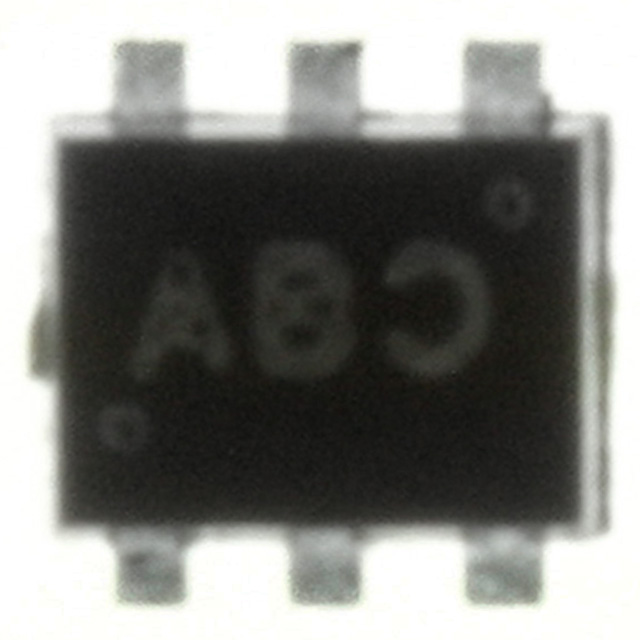

Part Number: 2N7002V

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: SC89

D/C: 2010+

Description: MOSFET N-CH SOT-563F

Price Break

3000
6000
12000

Unit Price

.10710
.10080
.09450

Extended Price

321.30
604.80
1134.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

2N7002V Parameters

Technical/Catalog Information	2N7002V
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	280mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	250mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-563F
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N7002V 2N7002V 2N7002VTR ND 2N7002VTRND 2N7002VTR

2N7002V Maximum Ratings

Characteristic	Symbol	Value	Units
Drain-Source Voltage	V_DSS	60	V
Drain-Gate Voltage R_GS 1.0M	V_DGR	60	V
Gate-Source Voltage (Note 3) Continuous Pulsed	V_GSS	±20 ±40	V
Drain Current (Note 3) Continuous	I_D	280	mA
Drain Current (Note 3) Pulsed	I_DM	1.5	A
Total Power Dissipation	P_d	150	mW
Thermal Resistance, Junction to Ambient	P_JA	833	°C/W
Operating and Storage Temperature Range	T_j,T_STG	-55 to +150	°C

2N7002V Features

Dual N-Channel MOSFET
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Ultra-Small Surface Mount Package
Lead Free By Design/RoHS Compliant (Note 3)

2N7002V Connection Diagram

2N7002V-7 Parameters

Technical/Catalog Information	2N7002V-7
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	280mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	150mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-563
FET Feature	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N7002V 7 2N7002V7 2N7002VDITR ND 2N7002VDITRND 2N7002VDITR

2N7002VA Parameters

Technical/Catalog Information	2N7002VA
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	280mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	250mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-563F
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N7002VA 2N7002VA 2N7002VADKR ND 2N7002VADKRND 2N7002VADKR

2N7002VA Maximum Ratings

Characteristic	Symbol	Value	Units
Drain-Source Voltage	V_DSS	60	V
Drain-Gate Voltage R_GS 1.0M	V_DGR	60	V
Gate-Source Voltage (Note 3) Continuous Pulsed	V_GSS	±20 ±40	V
Drain Current (Note 3) Continuous	I_D	280	mA
Drain Current (Note 3) Pulsed	I_DM	1.5	A
Total Power Dissipation	P_d	150	mW
Thermal Resistance, Junction to Ambient	P_JA	833	°C/W
Operating and Storage Temperature Range	T_j,T_STG	-55 to +150	°C

2N7002VA Features

2N7002VA Connection Diagram
