2N720, 2N720(A), 2N720A

Table of contents:
Info of 2N720
Info of 2N720(A)
Info of 2N720A

2N720, 2N720(A), 2N720A Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:CAN3 D/C:03+

2N720, 2N720(A), 2N720A Datasheet download

Five Points

Part Number: 2N720A

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

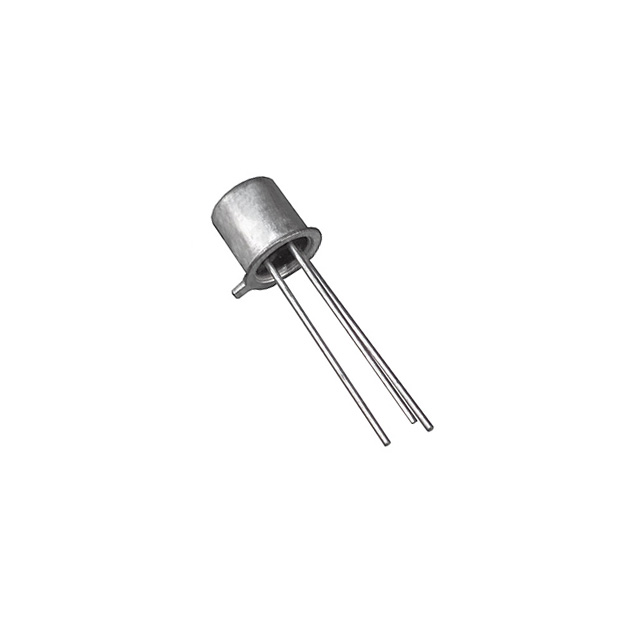

Package Cooled: CAN3

D/C: 03+

Description: TRANSISTOR NPN 80V .5A TO-18

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

2N720A Parameters

Technical/Catalog Information	2N720A
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	80V
Current - Collector (Ic) (Max)	500mA
Power - Max	1.8W
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 150mA, 10V
Vce Saturation (Max) @ Ib, Ic	5V @ 15mA, 150mA
Frequency - Transition	-
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	TO-18, Metal Case
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N720A 2N720A 497 3112 5 ND 49731125ND 497-3112-5

2N720A General Description

      This is the description about 2N720A, 2N1893 and 2N1893Sof the NPN low power silicon transistor, qualified per MIL-PRF-19500/182.
      The absolute Maximum Ratings are these (TA = 25°C). Collector-Emitter Voltage is 80 Vdc. Collector-Base Voltage is 120 Vdc. Emitter-Base Voltage is 7.0 Vdc. Collector-Emitter Voltage (RBE = 10 ) is 100 Vdc. Collector Current is 500 mAdc. Total Power Dissipation @ TA = +25°C is 0.5W for 2N720A and is 0.8W for 2N1893 and 2N1893S; @ TC = +2°C) is 1.8W for   2N720A and is 3.0W for 2N1893 and 2N1893S. Operating Junction Temperature Range is from -65 to +200°C and Storage Junction Temperature Range is also from -65 to +200°C.
      These are the ELECTRICAL CHARACTERISTICS (TA = 250C unless otherwise noted). Collector-Emitter Breakdown Voltage (IC = 30 mAdc) is 80 Vdc. Collector-Emitter Breakdown Voltage (IC = 10 mAdc, RBE = 10 is 100 Vdc. Collector-Base Cutoff Current (VCB = 120 Vdc) is 10Adc and (VCB = 90 Vdc) is 10 Adc. Emitter-Base Cutoff Current (VEB = 7.0 Vdc) is 10Adc (VEB = 5.0 Vdc) is 10 Adc. Forward-Current Transfer Ratio (IC = 0.1 mAdc, VCE = 10 Vdc) is 20 and (IC = 10 mAdc, VCE = 10 Vdc) is 35 and (IC = 150 mAdc, VCE = 10 Vdc) is from 40 to 120. Collector-Emitter Saturation Voltage(IC = 150 mAdc, IB = 15 mAdc) is 5 Vdc. Base-Emitter Voltage (IC = 150 mAdc, IB = 15 mAdc) is 1.3 Vdc.
      At present there is not too much information about this model. If you are willing to find more about the 2N720A, 2N1893 and 2N1893S, please pay attention to our web! We will promptly update the relevant information. You can find it in www.ChinaICMart.com or www.seekic.com. Welcome to contact with us.
