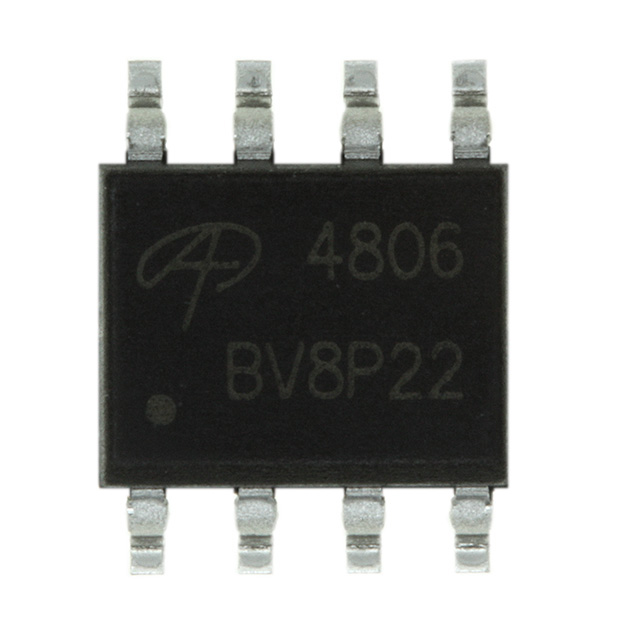

AO4805L, AO4806, AO4806L Datasheet download
Category: Discrete Semiconductor Products
MFG: Alpha & Omega Semiconductor Inc (VA)
Package Cooled: SOP-8
D/C: 09+
Description: MOSFET DUAL N-CH 20V 9.4A 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AO4400
File Size: 367760 KB
Manufacturer: AOSMD [Alpha & Omega Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AO4806
File Size: 435633 KB
Manufacturer: ALPHA
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AO4400
File Size: 367760 KB
Manufacturer: AOSMD [Alpha & Omega Semiconductors]
Download : Click here to Download
| Technical/Catalog Information | AO4806 |
| Vendor | Alpha & Omega Semiconductor Inc (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 N-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 9.4A |
| Rds On (Max) @ Id, Vgs | 14 mOhm @ 9.4A, 10V |
| Input Capacitance (Ciss) @ Vds | 1810pF @ 10V |
| Power - Max | 2W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 17.9nC @ 4.5V |
| Package / Case | 8-SOIC |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AO4806 AO4806 785 1056 6 ND 78510566ND 785-1056-6 |
The AO4806 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. They offer operation over a wide gate drive range from 1.8V to 12V. It is ESD protected. This device is suitable for use as a uni-directional or bi-directional load switch, facilitated by its common-drain configuration. Standard Product AO4806 is Pb-free (meets ROHS & Sony 259 specifications). AO4806L is a Green Product ordering option. AO4806 and AO4806L are electrically identical.
|
Parameter |
Symbol |
Maximum |
Units | |
| Drain-Source Voltage Gate-Source Voltage |
VDS VGS |
20 ±12 |
V V | |
| Continuous Drain Current A |
TA=25°C TA=70°C |
ID |
9.4 7.5 |
A |
| Pulsed Drain CurrentB |
IDM |
40 | ||
| Power Dissipation A |
TA=25°C TA=70°C |
PD |
2 1.28 |
W |
| Junction and Storage Temperature Range |
TJ, TSTG |
-55 to 150 |
°C | |
