AO9926B, AO9926E, AOB403

Table of contents:
Info of AO9926B
Info of AO9926E
Info of AOB403

AO9926B, AO9926E, AOB403 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA) Category:Discrete Semiconductor Products Package Cooled:SOP8 D/C:09+

AO9926B, AO9926E, AOB403 Datasheet download

Five Points

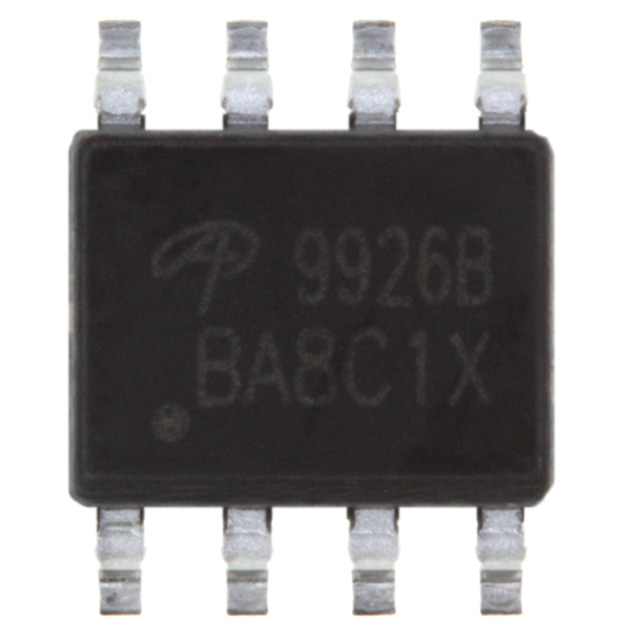

Part Number: AO9926B

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: SOP8

D/C: 09+

Description: MOSFET DUAL N-CH 20V 7.6A 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AO9926B Parameters

Technical/Catalog Information	AO9926B
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	7.6A
Rds On (Max) @ Id, Vgs	23 mOhm @ 7.6A, 10V
Input Capacitance (Ciss) @ Vds	630pF @ 10V
Power - Max	2W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	8.8nC @ 4.5V
Package / Case	8-SOIC
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AO9926B AO9926B 785 1100 6 ND 78511006ND 785-1100-6

AO9926B General Description

The AO9926B uses advanced trench technology to provide excellent R _DS(ON), low gate charge and operation with gate voltages as low as 1.8V while retaining a 12V V _GS(MAX) rating. This device is suitable for use as a uni-directional or bi-directional load switch. Standard Product AO9926B is Pb-free (meets ROHS & Sony 259 specifications). AO9926BL is a Green Product ordering option. AO9926B and AO9926BL are electrically identical.

AO9926B Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	20	V
Gate-Source Voltage		V_GS	±12	V
Continuous Drain Current ^A	T_A=25°C	I_D	7.6	A
	T_A=100°C		6.1
Pulsed Drain Current ^B		I_DM	30
Power Dissipation ^A	TA=25°C	P_DSM	2	W
	TA=100°C		1.28
Junction and Storage Temperature Range		T_J,T_STG	-55 to 150	°C

AO9926B Features

V_DS (V) = 20V
I_D = 7.6 A (V_GS = 10V)
R_DS(ON) < 23m (V_GS= 10V)
R_DS(ON) < 26m (V_GS= 4.5V)
R_DS(ON) < 34m (V_GS= 2.5V)
R DS(ON) < 52m (V_GS = 1.8V)

AO9926B Connection Diagram

AO9926E General Description

The AO9926E uses advanced trench technology to provide excellent R_DS(ON), low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWMapplications. It is ESD protected. Standard Product AO9926E is Pb-free (meets ROHS & Sony 259 specifications). AO9926EL is a Green Product ordering option. AO9926E and AO9926EL are

AO9926E Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	20	V
Gate-Source Voltage		V_GS	±8	V
Continuous Drain Current ^A	T_A=25°C	I_D	8	A
	T_A=70°C		6.4
Pulsed Drain Current ^B		I_DM	30
Power Dissipation ^A	T_A=25°C	P_D	2	W
	T_A=70°C		1.28
Junction and Storage Temperature Range		T_J, T_STG	-55 to 150	°C

AO9926E Features

`V_DS (V) = 20V
`I_D = 8A (V_GS = 4.5V)
`R_DS(ON) < 21m (V_GS = 4.5V)
`R_DS(ON) < 25m (V_GS = 2.5V)
`R_DS(ON) < 33m (V_GS = 1.8V)
`ESD Rating: 2000V HBM

AO9926E Connection Diagram

AOB403 General Description

The AOB403 uses advanced trench technology to provide excellent R_DS(ON), low gate charge and low gate resistance. With the excellent thermal resistance of the D2-PAK package, this device is well suited for high current load applications. Standard product AOB403 is Pb-free (meets ROHS & Sony 259 specifications). AOB403L is a Green Product ordering option. AOB403 and AOB403L are electrically identical.

AOB403 Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage Gate-Source Voltage		V_DS V_GS	-60 ±20	V V
Continuous Drain Current ^B.G	T_C=25°C T_C=100°C	I_D	-30 -20	A
Pulsed Drain CurrentC		I_DM	-60	A
Avalanche Current^C Repetitive avalanche energy L=0.3mH^C		I_ARE_AR	-26 134	A mJ
Power Dissipation ^B	T_C=25°C T_C=100°C	P_D	42 83	W
Power Dissipation ^A	T_A=25°C T_A=70°C	P_DSM	2.2 1.45	W
Junction and Storage Temperature Range		T_J, T_STG	-55 to 175	°C

AOB403 Features

·V_DS (V) = -60V
·I_D = -30A (V_GS=-10V)
·R_DS(ON) < 44mΩ (V_GS = -10V ) @ 30A
·R_DS(ON) < 55mΩ (V_GS = -4.5V ) @ 20A
