MFG:Texas Instruments (VA) Category:RF and RFID Package Cooled:TQFP64 D/C:06+
CC1010, CC1010PAGR, CC1020 Datasheet download
Category: RF and RFID
MFG: Texas Instruments (VA)
Package Cooled: TQFP64
D/C: 06+

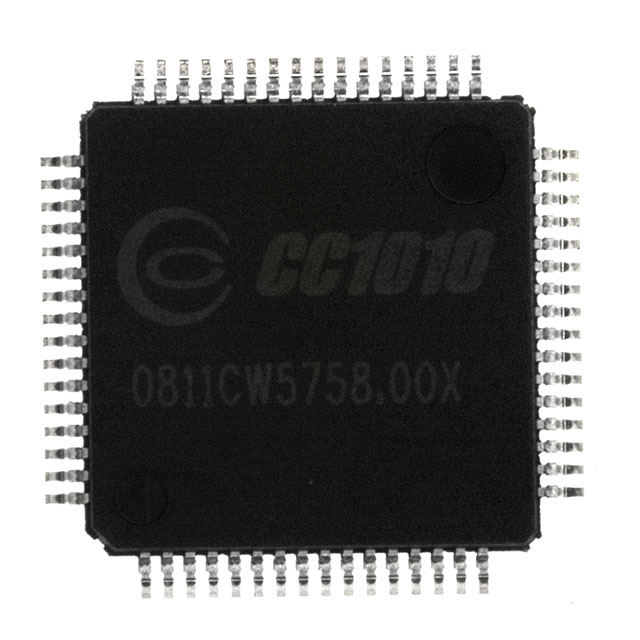

Description: IC RF TXRX W/8051 MCU LP 64TQFP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CC1010NM
File Size: 113389 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CC1000
File Size: 964607 KB
Manufacturer: Texas Instruments
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CC1020SKROHS
File Size: 993458 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
| Technical/Catalog Information | CC1010PAGR |
| Vendor | Texas Instruments (VA) |
| Category | RF and RFID |
| Frequency | 300MHz ~ 1GHz |
| Data Rate - Maximum | 78.6kBps |
| Modulation or Protocol | ISM, SRD |
| Applications | - |
| Power - Output | 10dBm |
| Sensitivity | -107dBm |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Receiving | 9.1mA |
| Current - Transmitting | 8.6mA |
| Package / Case | 64-TQFP |
| Operating Temperature | -40°C ~ 85°C |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Packaging | Digi-Reel? |
| Memory Size | 32kB |
| Drawing Number | 296; 4040282; PAG; 64 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CC1010PAGR CC1010PAGR 296 19578 6 ND 296195786ND 296-19578-6 |
CC1020 is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 - 470 and 804 - 940 MHz range.
The CC1020 is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220.
The CC1020 main operating parameters can be programmed via a serial bus, thus making CC1020 a very flexible and easy to use transceiver
| Parameter | Min | Max | Unit | Condition |
| Supply voltage, VDD | -0.3 | 5.0 | V | All supply pins must have the same voltage |
| Voltage on any pin | -0.3 | VDD+0.3, max 5.0 | V | |
| Input RF level | 10 | dBm | ||
| Storage temperature range | -50 | 150 | °C | |
| Package body temperature | 260 | °C | Norm: IPC/JEDEC J-STD-020C 1 | |
| Humidity non-condensing | 5 | 85 | % | |
| ESD (Human Body Model) |
±1 ±0.4 |
kV kV |
All pads except RF RF Pads |
