MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOP-8 D/C:93
FD9933A, FD9980.00, FDA032N08 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: SOP-8
D/C: 93
Description: MOSFET N-CH 75V 120A TO-3P
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDA-15PF
File Size: 406546 KB
Manufacturer: HIROSE [Hirose Electric]
Download : Click here to Download

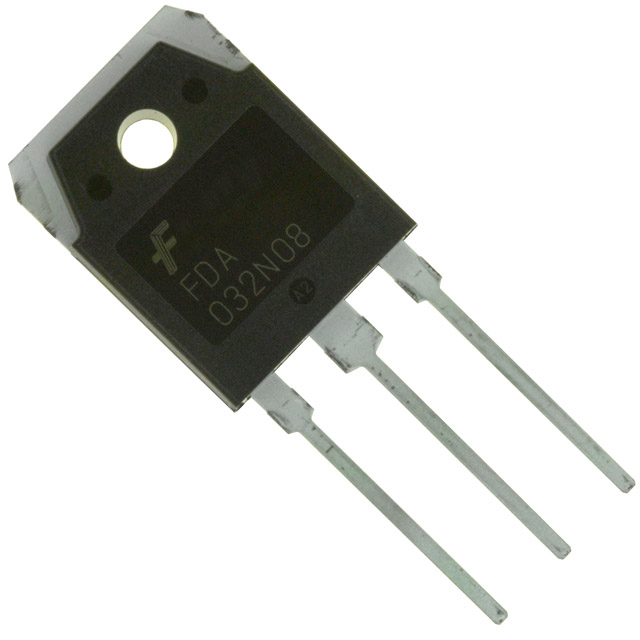

| Technical/Catalog Information | FDA032N08 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 75V |
| Current - Continuous Drain (Id) @ 25° C | 120A |
| Rds On (Max) @ Id, Vgs | 3.2 mOhm @ 75A, 10V |
| Input Capacitance (Ciss) @ Vds | 15160pF @ 25V |
| Power - Max | 375W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 220nC @ 10V |
| Package / Case | TO-3PN |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDA032N08 FDA032N08 |
This N-Channel MOSFET is produced using Fairchild Semiconductor?sadcanced PowerTrench process that has been especiallytailored to minimize the on-state resistance and yetmaintain superior switching performance.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDA032N08 | Full Production | RoHS Compliant | $4.26 | TO-3PN | 3 | RAIL | N/A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &E&3 (3-Digit Date Code) Line 2: FDA Line 3: 032N08 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDA032N08 is available. Click here for more information . |
