FDMF6730, FDMF8700, FDMF8704 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: QFN56
D/C: 2010+
Description: IC MODULE DRIVER/FET 56MLP 8X8
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FDMF6730 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF6730 FDMF6730 FDMF6730TR ND FDMF6730TRND FDMF6730TR |
The FDMF6730 is a high efficiency Driver plus MOSFET powerstage solution optimized for Ultra Mobile PC (UMPC) systempower voltage supplies. It is fully compliant with the Intel Ultra-Mobile Driver MOS (uDrMOS) Specification. The MOSFETs anddriver have been optimized to perform with high efficiency atlight and medium loads, ideal for compact PC devices.
The internal driver IC integrates two highly efficient LDOs forinternal gate-drive and external circuitry. The bootstrap diode isalso integrated within the IC. When operating with a single lowside MOSFET the uDrMOS module is capable of delivering upto 5A of continuous current. The PASS transistor may be easilyrouted in parallel with the low side MOSFET to provide up to10A. The module also incorporates an over current protectionflag from an RDSON current sense architecture.
The device comes in a 6X6 Power QFN package for improvedthermal performance.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMF6730 | Full Production | Green | $2.94 | Power 66 | 40 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &T (Die Trace Code) Line 2: FDMF6730 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMF6730 is available. Click here for more information . |

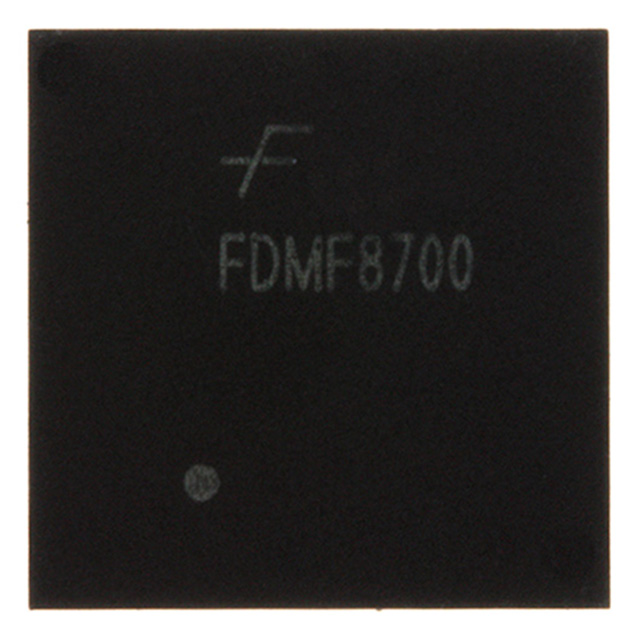

| Technical/Catalog Information | FDMF8700 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 12V |
| Voltage - Output | - |
| Current - Output | 30A |
| Power - Output | 9.1W |
| Package / Case | Power88-56 |
| Packaging | Digi-Reel? |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Switching | 500kHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF8700 FDMF8700 FDMF8700DKR ND FDMF8700DKRND FDMF8700DKR |
| Technical/Catalog Information | FDMF8704 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 7 ~ 20 V |
| Voltage - Output | 0.8 ~ 3.2 V |
| Current - Output | 32A |
| Power - Output | 10W |
| Package / Case | 56-MLP |
| Packaging | Digi-Reel? |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Switching | 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF8704 FDMF8704 FDMF8704DKR ND FDMF8704DKRND FDMF8704DKR |
The FDMF8704 is a fully optimized integrated Driver plusMOSFET power stage solution for high current synchronousbuck DC-DC applications. The device integrates a driver IC andtwo Power MOSFETs into a space saving, MLP 8x8, 56-pinpackage. Fairchild Semiconductor?s integrated approachoptimizes the complete switching power stage with regards todriver to FET dynamic performance, system inductance andoverall solution ON resistance. Package parasitics andproblematical layouts associated with conventional discretesolutions are greatly reduced. This integrated approach resultsin significant board space saving, therefore maximizing footprintpower density. This solution is based on the Intel? DrMOSspecification.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDMF8704 | Full Production | Green | $4.36 | Power 88 | 56 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &T (Die Trace Code) Line 2: FDMF8704 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDMF8704 is available. Click here for more information . |
