FDMS2734, FDMS3500, FDMS3572

Table of contents:
Info of FDMS2734
Info of FDMS3500
Info of FDMS3572

FDMS2734, FDMS3500, FDMS3572 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:QFN8 D/C:07+

FDMS2734, FDMS3500, FDMS3572 Datasheet download

Five Points

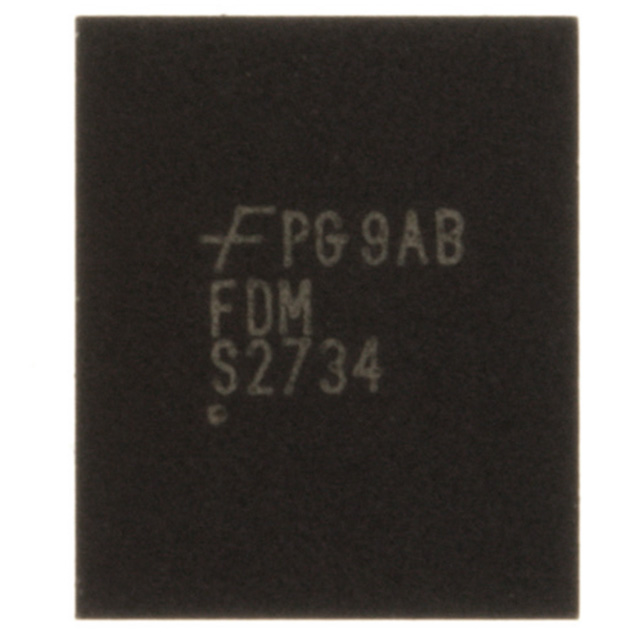

Part Number: FDMS2734

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: QFN8

D/C: 07+

Description: MOSFET N-CHAN 80V 8.8A POWER56

Price Break

3000
6000
12000
24000

Unit Price

1.24160
1.21250
1.18825
1.16400

Extended Price

3724.80
7275.00
14259.00
27936.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMS2734 Parameters

Technical/Catalog Information	FDMS2734
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25° C	2.8A
Rds On (Max) @ Id, Vgs	122 mOhm @ 2.8A, 10V
Input Capacitance (Ciss) @ Vds	2365pF @ 100V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	42nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS2734 FDMS2734 FDMS2734TR ND FDMS2734TRND FDMS2734TR

FDMS3500 Parameters

Technical/Catalog Information	FDMS3500
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	75V
Current - Continuous Drain (Id) @ 25° C	9.2A
Rds On (Max) @ Id, Vgs	14.5 mOhm @ 11.5A, 10V
Input Capacitance (Ciss) @ Vds	4765pF @ 40V
Power - Max	2.5W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	91nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS3500 FDMS3500 FDMS3500CT ND FDMS3500CTND FDMS3500CT

FDMS3572 Parameters

Technical/Catalog Information	FDMS3572
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25° C	8.8A
Rds On (Max) @ Id, Vgs	16.5 mOhm @ 8.8A, 10V
Input Capacitance (Ciss) @ Vds	2490pF @ 40V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	40nC @ 10V
Package / Case	Power56
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS3572 FDMS3572 FDMS3572TR ND FDMS3572TRND FDMS3572TR
