FDMS8672AS, FDMS8672S, FDMS8674

Table of contents:
Info of FDMS8672AS
Info of FDMS8672S
Info of FDMS8674

FDMS8672AS, FDMS8672S, FDMS8674 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:QFN8 D/C:07+

FDMS8672AS, FDMS8672S, FDMS8674 Datasheet download

Five Points

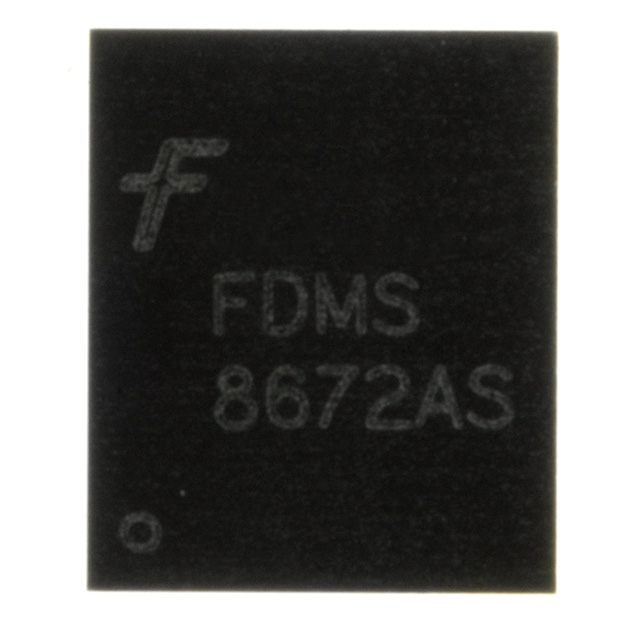

Part Number: FDMS8672AS

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: QFN8

D/C: 07+

Description: MOSFET N-CH 30V 17A POWER56

Price Break

3000

Unit Price

.70400

Extended Price

2112.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMS8672AS Parameters

Technical/Catalog Information	FDMS8672AS
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	18A
Rds On (Max) @ Id, Vgs	5 mOhm @ 18A, 10V
Input Capacitance (Ciss) @ Vds	2600pF @ 15V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	40nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8672AS FDMS8672AS FDMS8672ASTR ND FDMS8672ASTRND FDMS8672ASTR

FDMS8672S Parameters

Technical/Catalog Information	FDMS8672S
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	17A
Rds On (Max) @ Id, Vgs	5 mOhm @ 17A, 10V
Input Capacitance (Ciss) @ Vds	2515pF @ 15V
Power - Max	2.5W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	47nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8672S FDMS8672S FDMS8672SDKR ND FDMS8672SDKRND FDMS8672SDKR

FDMS8674 Parameters

Technical/Catalog Information	FDMS8674
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	17A
Rds On (Max) @ Id, Vgs	5 mOhm @ 17A, 10V
Input Capacitance (Ciss) @ Vds	2320pF @ 15V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	37nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8674 FDMS8674 FDMS8674TR ND FDMS8674TRND FDMS8674TR
