HFBR-2119TZ, HFBR-2316T, HFBR-2316TZ

Table of contents:
Info of HFBR-2119TZ
Info of HFBR-2316T
Info of HFBR-2316TZ

HFBR-2119TZ, HFBR-2316T, HFBR-2316TZ Selling Leads, Datasheet

MFG:Avago Technologies US Inc. Category:Optoelectronics Package Cooled:ZIP D/C:0952+

HFBR-2119TZ, HFBR-2316T, HFBR-2316TZ Datasheet download

Five Points

Part Number: HFBR-2119TZ

Category: Optoelectronics

MFG: Avago Technologies US Inc.

Package Cooled: ZIP

D/C: 0952+

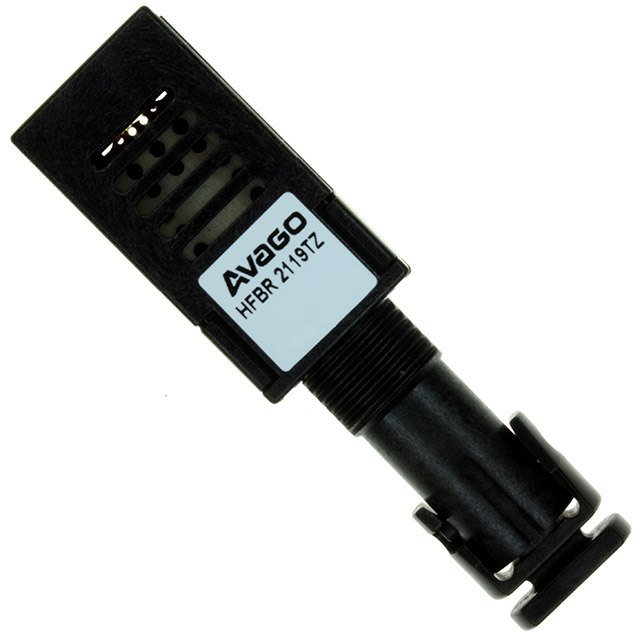

Description: RECEIVER FIBER OPTIC ST 1300NM

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HFBR-2119TZ Parameters

Technical/Catalog Information	HFBR-2119TZ
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Applications	General Purpose
Voltage - Supply	4.5 V ~ 5.5 V
Data Rate	-
Power - Minimum Receivable	-28dBm
Current - Supply	185mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HFBR 2119TZ HFBR2119TZ 516 2051 ND 5162051ND 516-2051

HFBR-2119TZ General Description

The HFBR-1119TZ/-2119TZ series of data links are high-performance, cost-efficient, transmitter and receiver modules for serial optical data communication applications specified at 266 MBd for Fibre Channel applications or for general-purpose fiber optic data link transmission.
These modules are designed for 50 or 62.5 μm core multimode optical fiber and operate at a nominal wavelength of 1300 nm. They incorporate our highperformance, reliable, long-wavelength, optical devices and proven circuit technology to give long life and consistent performance.

HFBR-2316T General Description

The HFBR-0300 Series is designed to provide the most cost-effective 1300 nm fiber optic links for a wide variety of data communication applications from low-speed distance extenders up to SONET OC-3 signal rates. Pinouts identical to Agilent HFBR-0400 Series allow designers to easily upgrade their 820 nm links for farther distance. The transmitter and receiver are compatible with two popular optical fiber sizes: 50/125 mm and 62.5/125 mm diameter. This allows flexibility in choosing a fiber size.

The 1300 nm wavelength is in the lower dispersion and attenuation region of fiber, and provides longer distance capabilities than 820 nm LED technology. Typical distance capabilities are 2 km at 125 MBd and 5 km at 32 MBd.

The HFBR-1312T fiber optic transmitter contains a 1300 nm InGaAsP light emitting diode capable of efficiently launching optical power into 50/125 mm and 62.5/125 mm diameter fiber. Converting the interface circuit from a HFBR-14XX 820 nm transmitter to the HFBR-1312T requires only the removal of a few passive components.

HFBR-2316T Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Storage Temperature	T_S	-55	85	°C
Operating Temperature	T_A	-40	85	°C
Lead Soldering Cycle Temperature			260	°C	Note 8
Lead Soldering Cycle Time			10	sec	Note 8
Forward Input Current DC	I_FDC		100	mA
Reverse Input Voltage	V_R		1	V

HFBR-2316T Features

• Low Cost Fiber Optic Link
• Signal Rates over 155 Megabaud
• 1300 nm Wavelength
• Link Distances over 5 km
• Dual-in-line Package Panel- Mountable ST* and SC Connector Receptacles
• Auto-Insertable and Wave-Solderable
• Specified with 62.5/125 mm and 50/125 mm Fiber
• Compatible with HFBR-0400 Series
• Receiver also Specified for SM Cable Spec (9/125 mm)

HFBR-2316T Typical Application

• Desktop Links for High Speed LANs
• Distance Extension Links
• Telecom Switch Systems
• TAXlchip^®Compatible

HFBR-2316T Connection Diagram

HFBR-2316TZ Parameters

Technical/Catalog Information	HFBR-2316TZ
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Applications	-
Voltage - Supply	4.75 V ~ 5.25 V
Data Rate	155Mbps
Power - Minimum Receivable	-45 dBm
Current - Supply	15mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HFBR 2316TZ HFBR2316TZ 516 2052 ND 5162052ND 516-2052

HFBR-2316TZ General Description

The HFBR-0300Z Series is designed to provide the most cost-effective 1300 nm fiber optic links for a wide variety of data communication applications from low-speed distance extenders up to SONET OC-3 signal rates. Pinouts identical to Avago HFBR-0400Z Series allow designers to easily upgrade their 820 nm links for farther distance. The trans-mitter and receiver are compatible with two popular optical fiber sizes: 50/125 μm and 62.5/125 μm diameter. This allows flexibility in choosing a fiber size. The 1300 nm wavelength is in the lower dispersion and attenuation region of fiber, and provides longer distance capabilities than 820 nm LED technology. Typical distance capabilities are 2 km at 125 MBd and 5 km at 32 MBd.
