IP-HAMD-CM, IPI03N03LA, IPI04N03LA

IP-HAMD-CM, IPI03N03LA, IPI04N03LA Selling Leads, Datasheet

MFG:Infineon Technologies  Category:Discrete Semiconductor Products  Package Cooled:DC135-354V  D/C:DC/DC/600W

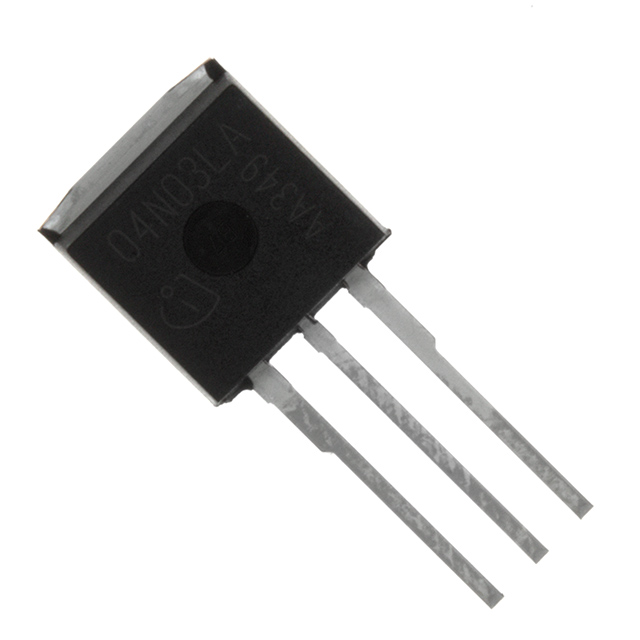

IPI04N03LA Picture

IP-HAMD-CM, IPI03N03LA, IPI04N03LA Datasheet download

Five Points

Part Number: IPI04N03LA

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: DC135-354V

D/C: DC/DC/600W

Description: MOSFET N-CH 25V 80A TO-262






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

IP-HAMD-CM Suppliers

More IP-HAMD-CM Suppliers

Select All

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

IPI03N03LA Suppliers

More IPI03N03LA Suppliers

Select All

  • IPI14N03LA

  • Vendor: Infineon Pack: TO D/C: 09+& Qty: 390  Adddate: 2024-03-29
  • Inquire Now
  • EK   China
    Contact: Mr.kevin
    Tel: +86-755-111111111
    Fax:
    (1)

About IPI03N03LA

PDF/DataSheet Download

Datasheet: IPI03N03LA

File Size: 325310 KB

Manufacturer: INFINEON [Infineon Technologies AG]

Download : Click here to Download

Related PDF Download

Related Part Number

IPI04N03LA Suppliers

More IPI04N03LA Suppliers

Select All

  • IPI14N03LA

  • Vendor: Infineon Pack: TO D/C: 09+& Qty: 390  Adddate: 2024-03-29
  • Inquire Now
  • EK   China
    Contact: Mr.kevin
    Tel: +86-755-111111111
    Fax:
    (1)

About IPI04N03LA

PDF/DataSheet Download

Datasheet: IPI04N03LA

File Size: 356533 KB

Manufacturer: INFINEON [Infineon Technologies AG]

Download : Click here to Download

Related PDF Download

Related Part Number

IPI03N03LA Parameters

Technical/Catalog InformationIPI03N03LA
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25° C80A
Rds On (Max) @ Id, Vgs3 mOhm @ 55A, 10V
Input Capacitance (Ciss) @ Vds 7027pF @ 15V
Power - Max150W
PackagingTube
Gate Charge (Qg) @ Vgs57nC @ 5V
Package / CaseI²Pak, TO-262 (3 straight leads + tab)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IPI03N03LA
IPI03N03LA

IPI03N03LA Maximum Ratings

Parameter Symbol Conditions Value Unit
Continuous drain current ID TC=25 2) 80 A
TC=100 80
Pulsed drain current ID,pulse TC=25 3) 385
Avalanche energy, single pulse EAS ID=80 A, RGS=25 Ω 960 mJ
Reverse diode dv /dt dv /dt ID=80 A, VDS=20 V, di /dt =200 A/µs,
T j,max=175
6 kV/µs
Gate source voltage4) VGS   ±20 V
Power dissipation Ptot TC=25 °C 150 W
Operating and storage temperature Tj, Tstg   -55 ...175
IEC climatic category; DIN IEC 68-1     55/175/56

IPI03N03LA Features

• Ideal for high-frequency dc/dc converters
• Qualified according to JEDEC1) for target applications
• N-channel - Logic level
• Excellent gate charge x RDS(on) product (FOM)
• Very low on-resistance RDS(on)
• Superior thermal resistance
• 175 °C operating temperature
• dv /dt rated

IPI04N03LA Parameters

Technical/Catalog InformationIPI04N03LA
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25° C80A
Rds On (Max) @ Id, Vgs4.2 mOhm @ 55A, 10V
Input Capacitance (Ciss) @ Vds 3877pF @ 15V
Power - Max107W
PackagingTube
Gate Charge (Qg) @ Vgs32nC @ 5V
Package / CaseI²Pak, TO-262 (3 straight leads + tab)
FET FeatureLogic Level Gate
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names IPI04N03LA
IPI04N03LA
IPI04N03LAIN ND
IPI04N03LAINND
IPI04N03LAIN

IPI04N03LA Maximum Ratings

Parameter Symbol Conditions Value Unit
Continuous drain current ID TC=25 °C 80 A
TC=100 °C 80 A
Pulsed drain current ID,pulse TC=25 °C 385 A
Avalanche energy, single pulse EAS ID=77 A, RGS=25 Ω 290 mJ
Reverse diode dv /dt dv /dt ID=80 A, VDS=20 V,
di /dt =200 A/µs,
Tj,max=175 °C
6 kV/µs
Gate source voltage VGS   ±20 V
Power dissipation Ptot TC=25 °C 107 W
Operating and storage temperature Tj, Tstg   -55 ... 175 °C
IEC climatic category; DIN IEC 68-1     55/175/56

IPI04N03LA Features

• Ideal for high-frequency dc/dc converters
• N-channel
• Logic level
• Excellent gate charge x RDS(on) product (FOM)
• Very low on-resistance RDS(on)
• Superior thermal resistance
• 175 °C operating temperature
• dv /dt rated
