MFG:International Rectifier Category:Discrete Semiconductor Products Package Cooled:Sot-223 D/C:09+

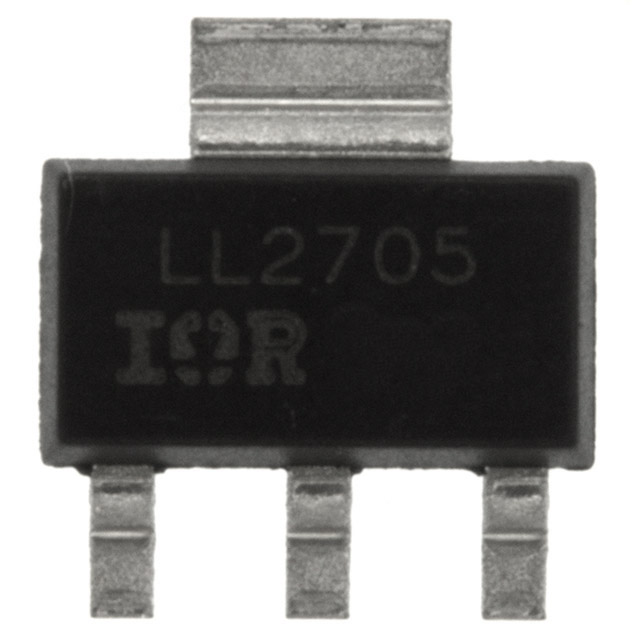

IRLL2705TR, IRLL2705TRPBF, IRLL3303 Datasheet download
Category: Discrete Semiconductor Products
MFG: International Rectifier
Package Cooled: Sot-223
D/C: 09+
Description: MOSFET N-CH 55V 3.8A SOT223
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IRL1004
File Size: 91524 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRL1004
File Size: 91524 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRLL3303
File Size: 165861 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IRLL2705TR |
| Vendor | International Rectifier (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25° C | 3.8A |
| Rds On (Max) @ Id, Vgs | 40 mOhm @ 3.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 870pF @ 25V |
| Power - Max | 1W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 48nC @ 10V |
| Package / Case | SOT-223, SC-73, TO-261 (3 Leads + Tab) |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IRLL2705TR IRLL2705TR IRLL2705CT ND IRLL2705CTND IRLL2705CT |
| Technical/Catalog Information | IRLL2705TRPBF |
| Vendor | International Rectifier |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25° C | 3.8A |
| Rds On (Max) @ Id, Vgs | 40 mOhm @ 3.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 870pF @ 25V |
| Power - Max | 1W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 48nC @ 10V |
| Package / Case | SOT-223 (3 leads + Tab), SC-73, TO-261AA |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRLL2705TRPBF IRLL2705TRPBF IRLL2705PBFTR ND IRLL2705PBFTRND IRLL2705PBFTR |
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The SOT-223 package is designed for surface-mount using vapor phase, infra red, or wave soldering techniques.
Its unique package design allows for easy automatic pickand- place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of 1.0W is possible in a typical surface mount application.
| Parameter | Max. | Units | |
| ID @ TA = 25°C | Continuous Drain Current, VGS @ 10V** | 6.5 | A |
| ID @ TA = 25°C | Continuous Drain Current, VGS @ 10V* | 4.6 | |
| ID @ TA = 70°C | Continuous Drain Current, VGS @ 10V* | 3.7 | |
| IDM | Pulsed Drain Current | 37 | |
| PD @TA = 25°C | Power Dissipation(PCB Mount)** | 2.1 | W |
| PD @TA = 25°C | Power Dissipation(PCB Mount)* | 1.0 | W |
| Linear Derating Factor(PCB Mount)* | 8.3 | W/°C | |
| VGS | Gate-to-Source Voltage | ±16 | V |
| EAS | Single Pulse Avalanche Energy | 140 | mJ |
| IAR | Avalanche Current | 4.6 | A |
| EAR | Repetitive Avalanche Energy | 0.10 | mJ |
| dv/dt | Peak Diode Recovery dv/dt | 1.3 | V/ns |
| TJ TSTG | Junction and Storage Temperature Range | -55 to + 175 | °C |
