Part Number: IRLML6401TR

Category: Discrete Semiconductor Products

MFG: International Rectifier (VA)

Package Cooled: SOT23

D/C: 06+

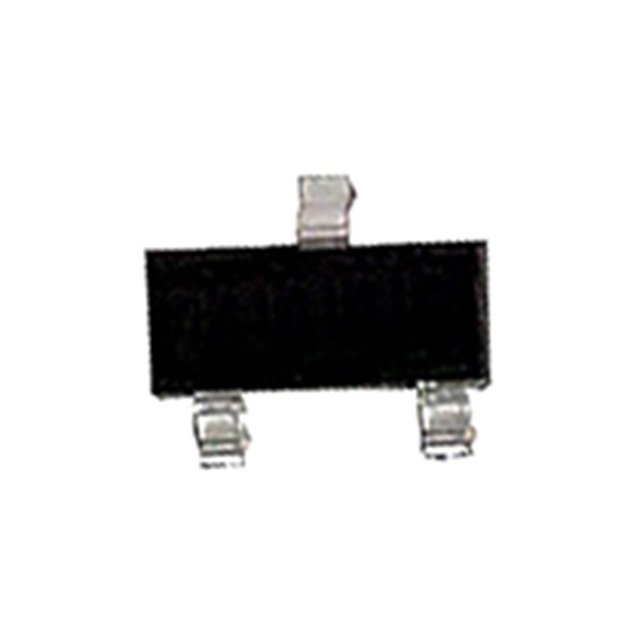

Description: MOSFET P-CH 12V 4.3A SOT-23

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IRLML6401TR Parameters

Technical/Catalog Information	IRLML6401TR
Vendor	International Rectifier
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25° C	4.3A
Rds On (Max) @ Id, Vgs	50 mOhm @ 4.3A, 4.5V
Input Capacitance (Ciss) @ Vds	830pF @ 10V
Power - Max	1.3W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	15nC @ 5V
Package / Case	Micro3?(SOT-23-3, TO-236AB)
FET Feature	Logic Level Gate
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IRLML6401TR IRLML6401TR

IRLML6401TRPBF Parameters

Technical/Catalog Information	IRLML6401TRPBF
Vendor	International Rectifier (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25° C	4.3A
Rds On (Max) @ Id, Vgs	50 mOhm @ 4.3A, 4.5V
Input Capacitance (Ciss) @ Vds	830pF @ 10V
Power - Max	1.3W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	15nC @ 5V
Package / Case	SOT-23-3, TO-236-3, Micro3?, SSD3, SST3
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IRLML6401TRPBF IRLML6401TRPBF IRLML6401PBFDKR ND IRLML6401PBFDKRND IRLML6401PBFDKR

IRLML6402 General Description

These P-Channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low onresistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in battery and load management.

A thermally enhanced large pad leadframe has been incorporated into the standard SOT-23 package to produce a HEXFET Power MOSFET with the industry's smallest footprint. This package, dubbed the Micro3, is ideal for applications where printed circuit board space is at a premium. The low profile (<1.1mm) of the Micro3 allows it to fit easily into extremely thin application environments such as portable electronics and PCMCIA cards. The thermal resistance and power dissipation are the best available.

IRLML6402 Maximum Ratings

	Parameter	Max.	Units
VDS	Drain- Source Voltage	-20	V
ID @ TA = 25°C	Continuous Drain Current, VGS @ -4.5V	-3.7	A
ID @ TA= 70°C	Continuous Drain Current, VGS @ -4.5V	-2.2
IDM	Pulsed Drain Current	-22
PD @TA = 25°C	Power Dissipation	1.3	W
PD @TA = 70°C	Power Dissipation	0.8	W
	Linear Derating Factor	0.01	W/°C
EAS	Single Pulse Avalanche Energy	11	mJ
VGS	Gate-to-Source Voltage	± 12	V
TJ, TSTG	Junction and Storage Temperature Range	-55 to + 150	°C

IRLML6402 Features

·Ultra Low On-Resistance
·P-Channel MOSFET
·SOT-23 Footprint
· Low Profile (<1.1mm)
· Available in Tape and Reel
· Fast Switching
