MFG:International Rectifier (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-163 D/C:05+
IRLMS1503TR, IRLMS1503TRPBF, IRLMS1902 Datasheet download
Category: Discrete Semiconductor Products
MFG: International Rectifier (VA)
Package Cooled: SOT-163
D/C: 05+
Description: MOSFET N-CH 30V 3.2A 6-TSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IRL1004
File Size: 91524 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRL1004
File Size: 91524 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRLMS1902
File Size: 192129 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IRLMS1503TR |
| Vendor | International Rectifier |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 3.2A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 2.2A, 10V |
| Input Capacitance (Ciss) @ Vds | 210pF @ 25V |
| Power - Max | 1.7W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 9.6nC @ 10V |

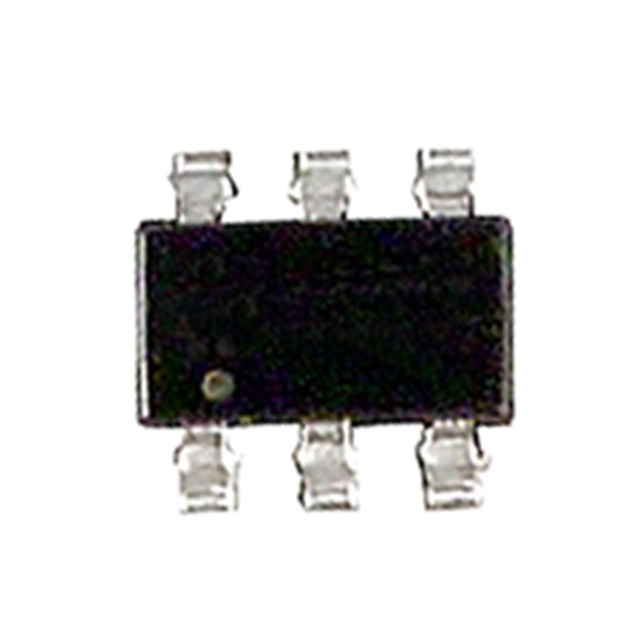

| Package / Case | Micro6?(TSOP-6) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IRLMS1503TR IRLMS1503TR |
| Technical/Catalog Information | IRLMS1503TRPBF |
| Vendor | International Rectifier (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 3.2A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 2.2A, 10V |
| Input Capacitance (Ciss) @ Vds | 210pF @ 25V |
| Power - Max | 1.7W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 9.6nC @ 10V |
| Package / Case | Micro6?(TSOP-6) |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRLMS1503TRPBF IRLMS1503TRPBF IRLMS1503PBFDKR ND IRLMS1503PBFDKRND IRLMS1503PBFDKR |
Fifth Generation HEXFET® power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET® power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The Micro6 package with its customized leadframe produces a HEXFET® power MOSFET with RDS(on) 60% less than a similar size SOT-23. This package is ideal for applications where printed circuit board space is at a premium. It's unique thermal design and RDS(on) reduction enables a current-handling increase of nearly 300% compared to the SOT-23.
| Parameter | Max. | Units | |
| ID @ TA = 25°C | Continuous Drain Current, VGS @4.5V | 3.2 | A |
| ID @ TA = 70°C | Continuous Drain Current, VGS @4.5V | 2.6 | |
| IDM | Pulsed Drain Current | 18 | |
| PD @TA = 25°C | Power Dissipation | 1.7 | W |
| Linear Derating Factor | 13 | W/°C | |
| VGS | Gate-to-Source Voltage | ±8.0 | V |
| dv/dt | Peak Diode Recovery dv/dt | 5.0 | V/ns |
| TJ TSTG | Junction and Storage Temperature Range | -55 to + 150 | °C |
