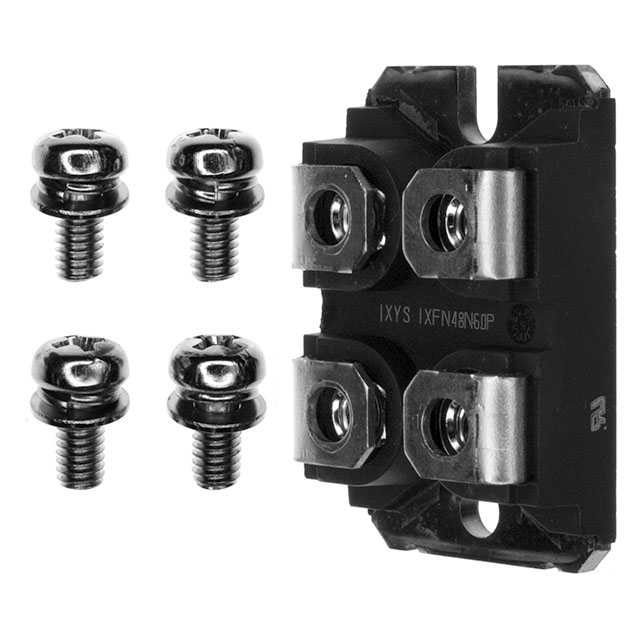

IXFN48N50U3, IXFN48N60P, IXFN50N25 Datasheet download
Category: Discrete Semiconductor Products
MFG: IXYS
Package Cooled: MODULE
D/C: 06+
Description: MOSFET N-CH 600V 40A SOT-227
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IXFN48N50U3
File Size: 155530 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXFB38N100Q2
File Size: 157581 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXFN50N25
File Size: 302358 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
| Technical/Catalog Information | IXFN48N50U3 |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Mounting Type | Chassis Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25° C | 48A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 500mA, 10V |
| Input Capacitance (Ciss) @ Vds | 8400pF @ 25V |
| Power - Max | 520W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 270nC @ 10V |
| Package / Case | SOT-227B miniBLOC |
| FET Feature | Standard |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXFN48N50U3 IXFN48N50U3 |
| Symbol | Test Conditions | Maximum | Ratings |
| VDSS VDGR |
TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 M |
500 500 |
V V |
| VGS VGSM |
Continuous Transient |
±20 ±30 |
V V |
| ID25 IDM IAR |
TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C |
44N50 44 48N50 48 44N50 176 48N50 192 |
A A A A |
|
EAR |
TC = 25°C TC = 25°C |
24 30 |
mJ |
| dv/dt | IS IDM, di/dt 100 A/s, VDD VDSS TJ 150°C, RG = 2 |
5 | V/ns |
| PD | TC = 25°C | 520 | W |
| TJ TJM Tstg |
-55 ... +150 150 -55 ... +150 |
°C °C °C | |
| VISOL | 50/60 Hz, RMS t = 1 min IISOL 1 mA t = 1 s |
2500 3000 |
V~ V~ |
| Md |
Mounting torque Terminal connection torque |
1.5/13 1.5/13 |
Nm/lb.in. Nm/lb.in. |
| Weight | 30 | g |
| Technical/Catalog Information | IXFN48N60P |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Mounting Type | Chassis Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25° C | 40A |
| Rds On (Max) @ Id, Vgs | 140 mOhm @ 4A, 10V |
| Input Capacitance (Ciss) @ Vds | 8860pF @ 25V |
| Power - Max | 625W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 150nC @ 10V |
| Package / Case | SOT-227B miniBLOC |
| FET Feature | Standard |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXFN48N60P IXFN48N60P |
