IXFN64N50P, IXFN64N50PD2, IXFN64N60P

Table of contents:
Info of IXFN64N50P
Info of IXFN64N50PD2
Info of IXFN64N60P

IXFN64N50P, IXFN64N50PD2, IXFN64N60P Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:61A/500V/MOS/1U D/C:N/A

IXFN64N50P, IXFN64N50PD2, IXFN64N60P Datasheet download

Five Points

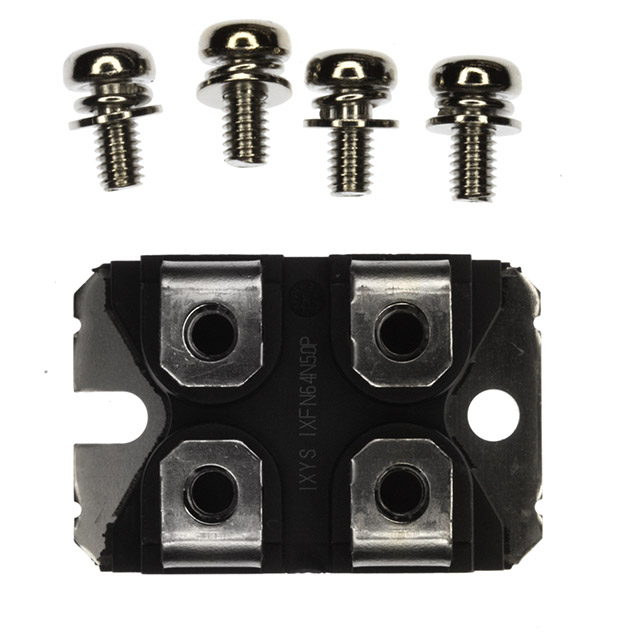

Part Number: IXFN64N50P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: 61A/500V/MOS/1U

D/C: N/A

Description: MOSFET N-CH 600V 50A SOT-227

Price Break

1
10
50
100
500
1000

Unit Price

30.36000
25.30000
20.24000
15.08000
13.66200
12.65000

Extended Price

30.36
253.00
1012.00
1508.00
6831.00
12650.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXFN64N50P Parameters

Technical/Catalog Information	IXFN64N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Chassis Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	61A
Rds On (Max) @ Id, Vgs	85 mOhm @ 32A, 10V
Input Capacitance (Ciss) @ Vds	8700pF @ 25V
Power - Max	700W
Packaging	Tube
Gate Charge (Qg) @ Vgs	150nC @ 10V
Package / Case	SOT-227B miniBLOC
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFN64N50P IXFN64N50P

IXFN64N50P Maximum Ratings

Symbol	Test Conditions	Maximum Ratings
V_DSS V_DGR	T_J = 25°C to 150°C T_J = 25°C to 150°C; R_GE= 1 M	500 500	V V
V_GS V_GEM	Continuous Transient	±30 ±40	V V
I_D25 I_DM	T_C = 25°C T_C = 25°C, pulse width limited by TJM	64 150	A A
I_AR E_ARE_AS	T_C = 25°C T_C= 25°C T_C= 25°C	64 70 2.0	A mJ J
dv/dt	I_S I_DM, di/dt 100 A/µs, V_DD V_DSS, T_J 150°C, R_G = 4 Ω	20	V/ns
P_D	T_C = 25°C	700	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
M_d	Mounting torque	1.13/10 Nm/lb.in.
V_ISOL	50/60 Hz t = 1 min I_ISOL 1 mA t= 1 s	2500 3000	V~ V~
M_d	Mounting torque Terminal connection torque (M4)	1.5/13 1.5/13	Nm/lb.in. Nm/lb.in.. .
Weight	SOT-227B	30	g

IXFN64N50P Features

International standard packages
Fast recovery diode
Unclamped Inductive Switching (UIS) rated
Low package inductance
- easy to drive and to protect

IXFN64N50P Typical Application

Easy to mount
Space savings
High power density

IXFN64N50PD2 Parameters

Technical/Catalog Information	IXFN64N50PD2
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Chassis Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	52A
Rds On (Max) @ Id, Vgs	85 mOhm @ 32A, 10V
Input Capacitance (Ciss) @ Vds	11000pF @ 25V
Power - Max	625W
Packaging	Tube
Gate Charge (Qg) @ Vgs	186nC @ 10V
Package / Case	SOT-227B miniBLOC
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFN64N50PD2 IXFN64N50PD2

IXFN64N60P Parameters

Technical/Catalog Information	IXFN64N60P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Chassis Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	50A
Rds On (Max) @ Id, Vgs	96 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	12000pF @ 25V
Power - Max	700W
Packaging	Tube
Gate Charge (Qg) @ Vgs	200nC @ 10V
Package / Case	SOT-227B miniBLOC
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFN64N60P IXFN64N60P
