MJF15031, MJF15031G, MJF18002

Table of contents:
Info of MJF15031
Info of MJF15031G
Info of MJF18002

MJF15031, MJF15031G, MJF18002 Selling Leads, Datasheet

MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:08+/09+

MJF15031, MJF15031G, MJF18002 Datasheet download

Five Points

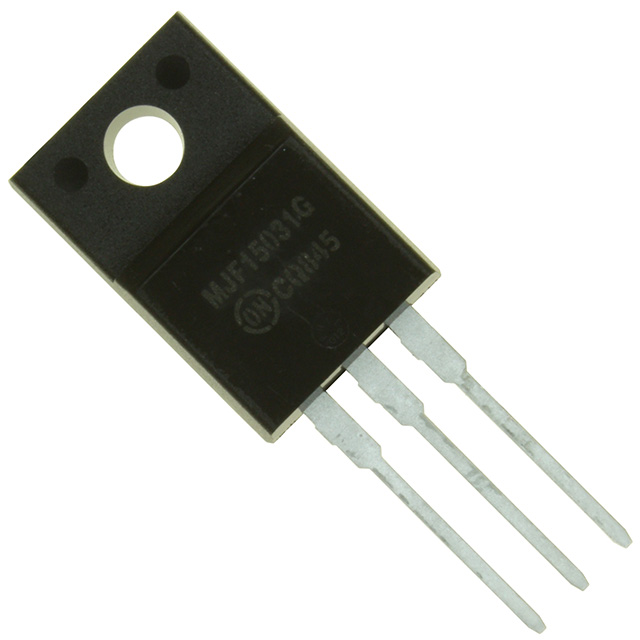

Part Number: MJF15031G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor

Package Cooled: N/A

D/C: 08+/09+

Description: TRANS POWER PNP 8A 150V TO220FP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MJF15031 Parameters

Technical/Catalog Information	MJF15031
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	150V
Current - Collector (Ic) (Max)	8A
Power - Max	36W
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A
Frequency - Transition	30MHz
Current - Collector Cutoff (Max)	10A
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack (Straight Leads)
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MJF15031 MJF15031 MJF15031OS ND MJF15031OSND MJF15031OS

MJF15031 Maximum Ratings

Rating	Symbol	MJF31C MJF32C	Unit
CollectorEmitter Voltage	V_CEO	150	Vdc
CollectorBase Voltage	V_CB	150	Vdc
EmitterBase Voltage	V_EB	5	Vdc
RMS Isolation Voltage (1) Test No. 1 Per Fig. 11 (for 1 sec, R.H. < 30%, Test No. 2 Per Fig. 12 TA = 25) Test No. 3 Per Fig. 13	V_ISOL	4500 3500 1500	V_RMS
Collector Current - Continuous - Peak	I_C	8 16	Adc
Base Current	I_B	2	Adc
Total Power Dissipation @ T_C = 25 Derate Above 25	P_D	36 0.29	Watts W/
Total Power Dissipation @ T_C = 25 Derate Above 25	P_D	2 0.016	Watts W/
Operating and Storage Junction Temperature Range	T_J, T_stg	65 to +150

MJF15031 Typical Application

• Electrically Similar to the Popular MJE15030 and MJE15031
• 150 VCEO(sus)
• 8 A Rated Collector Current
• No Isolating Washers Required
• Reduced System Cost
• High Current GainBandwidth Product fT = 30 MHz (Min) @ IC = 500 mAdc
• UL Recognized, File #E69369, to 3500 VRMS Isolation

MJF15031G Parameters

Technical/Catalog Information	MJF15031G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	150V
Current - Collector (Ic) (Max)	8A
Power - Max	36W
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A
Frequency - Transition	30MHz
Current - Collector Cutoff (Max)	10A
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack (Straight Leads)
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MJF15031G MJF15031G MJF15031GOS ND MJF15031GOSND MJF15031GOS

MJF18002 Maximum Ratings

Rating	Symbol	Value	Unit
CollectorEmitter Breakdown Voltage	V_CES	1500	Vdc
CollectorBase Sustaining Voltage	V_CEO(SUS)	650	Vdc
EmitterBase Voltage	V_EBO	8.0	Vdc
RMS Isolation Voltage (2) (for 1 sec, TA = 25, Per Fig. 14 Rel. Humidity < 30%) Per Fig. 15	V_ISOL	- -	Vdc
Collector Current - Continuous - Peak (1)	I_C I_CM	10 15	Adc
Base Current - Continuous - Pulsed (1)	I_B IBM	5.0 10	Adc
Maximum Repetitive EmitterBase Avalanche Energy	W(BER)	0.2	mJ
Total Power Dissipation @ T_C = 25 Total Power Dissipation @ T_C = 100 Derated above TC = 25	P_D	150 39 1.49	Watts W/
Operating and Storage Junction Temperature Range	T_J, T_stg	65 to +150

MJF18002 Features

• 1500 Volt CollectorEmitter Breakdown Capability
• Typical Dynamic Desaturation Specified (New TurnOff Characteristic)
• Application Specific StateoftheArt Die Design
• Fast Switching: 200 ns Inductive Fall Time (Typ) 2000 ns Inductive Storage Time (Typ)
• Low Saturation Voltage: 0.15 Volts at 5.5 Amps Collector Current and 2.5 A Base Drive
• Low CollectorEmitter Leakage Current - 250 mA Max at 1500 Volts - VCES
• High EmitterBase Breakdown Capability For High Voltage Off Drive Circuits - 8.0 Volts (Min)
