MFG:NEC Category:Discrete Semiconductor Products Package Cooled:SOT-23 D/C:06+
NE94433-T1B, NE94433-T1B-A, NE97733 Datasheet download
Category: Discrete Semiconductor Products
MFG: NEC

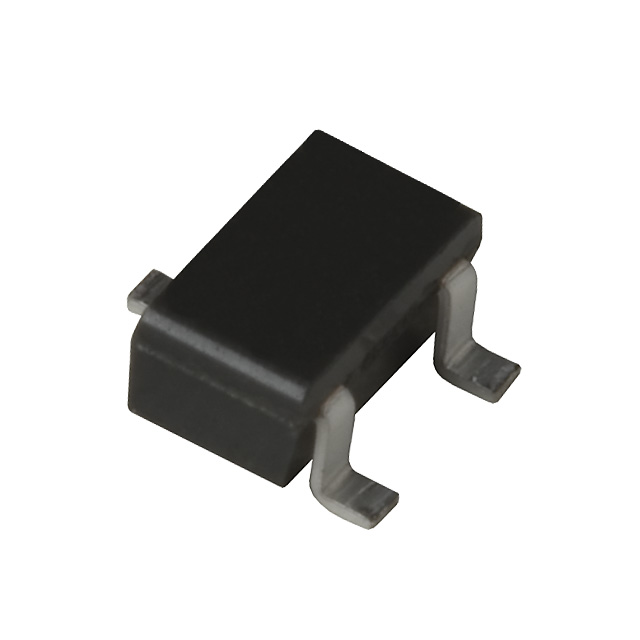

Package Cooled: SOT-23
D/C: 06+
Description: TRANSISTOR NPN OSC FT=2GHZ SO
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NE94433-T1B
File Size: 59677 KB
Manufacturer: NEC [NEC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NE944
File Size: 59677 KB
Manufacturer: NEC [NEC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NE97733
File Size: 47025 KB
Manufacturer: NEC [NEC]
Download : Click here to Download
| Technical/Catalog Information | NE94433-T1B |
| Vendor | NEC (VA) |
| Category | Discrete Semiconductor Products |
| Frequency - Transition | 2GHz |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 10V |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| Gain | - |
| Power - Max | 150mW |
| Compression Point (P1dB) | - |
| Package / Case | SOT-23 |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | NE94433 T1B NE94433T1B NE94433CT ND NE94433CTND NE94433CT |
| Technical/Catalog Information | NE94433-T1B-A |
| Vendor | NEC |
| Category | Discrete Semiconductor Products |
| Frequency - Transition | 2GHz |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 10V |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| Gain | - |
| Power - Max | 150mW |
| Compression Point (P1dB) | - |
| Package / Case | SOT-23 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NE94433 T1B A NE94433T1BA NE94433B ATR ND NE94433BATRND NE94433B-ATR |
|
SYMBOLS |
PARAMETERS |
UNITS |
RATINGS |
|
VCEO |
Collector to Emitter Voltage |
V |
-20 |
|
VCBO |
Collector to Base Voltage |
V |
-12 |
|
VEBO |
Emitter to Base Voltage |
V |
-3 |
|
IC |
Collector Current |
mA |
-50 |
|
Tj |
Junction Temperature |
°C |
150 |
|
TSTG |
Storage Temperature |
°C |
-55 to +150 |
