NTGS3441T1, NTGS3441T1/PTY, NTGS3441T1G

Table of contents:
Info of NTGS3441T1
Info of NTGS3441T1/PTY
Info of NTGS3441T1G

NTGS3441T1, NTGS3441T1/PTY, NTGS3441T1G Selling Leads, Datasheet

MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:30000 D/C:0450+

NTGS3441T1, NTGS3441T1/PTY, NTGS3441T1G Datasheet download

Five Points

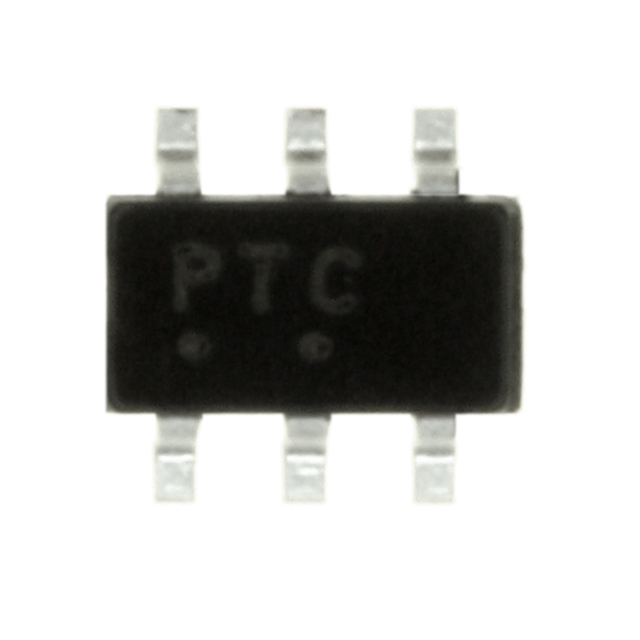

Part Number: NTGS3441T1G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor (VA)

Package Cooled: 30000

D/C: 0450+

Description: MOSFET P-CH 20V 1.65A 6-TSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NTGS3441T1 Parameters

Technical/Catalog Information	NTGS3441T1
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	1.65A
Rds On (Max) @ Id, Vgs	90 mOhm @ 3.3A, 4.5V
Input Capacitance (Ciss) @ Vds	480pF @ 5V
Power - Max	500mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	14nC @ 4.5V
Package / Case	6-TSOP
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NTGS3441T1 NTGS3441T1 NTGS3441T1OS ND NTGS3441T1OSND NTGS3441T1OS

NTGS3441T1 Maximum Ratings

Rating	Symbol	Value	Unit
Drain−to−Source Voltage	V_DSS	−20	V
Gate−to−Source Voltage − Continuous	V_GS	±8.0	V
Thermal Resistance Junction−to−Ambient (Note 1) Total Power Dissipation @ TA = 25°C Drain Current − Continuous @ TA = 25°C − Pulsed Drain Current (Tp 10 S)	R_JA P_d I_D I_DM	244 0.5 −1.65 −10	°C/W W A A
Thermal Resistance Junction−to−Ambient (Note 2) Total Power Dissipation @ TA = 25°C Drain Current − Continuous @ TA = 25°C − Pulsed Drain Current (Tp 10 S)	R_JA P_d I_D I_DM	128 1.0 −2.35 −14	°C/W W A A
Thermal Resistance Junction−to−Ambient (Note 3) Total Power Dissipation @ TA = 25°C Drain Current − Continuous @ TA = 25°C − Pulsed Drain Current (Tp 10 S)	R_JA P_d I_D I_DM	62.5 2.0 −3.3 −20	°C/W W A A
Operating and Storage Temperature Range	T_J, T_stg	−55 to 150	°C
Maximum Lead Temperature for Soldering Purposes for 10 Seconds	T_L	260	°C

1. Minimum FR−4 or G−10PCB, operating to steady state.
2. Mounted onto a 2, square FR−4 board (1, sq. 2 oz. cu. 0.06, thick single sided), operating to steady state.
3. Mounted onto a 2, square FR−4 board (1, sq. 2 oz. cu. 0.06, thick single sided), t 5.0 seconds.

NTGS3441T1 Features

• Ultra Low RDS(on)
• Higher Efficiency Extending Battery Life
• Miniature TSOP−6 Surface Mount Package
• Pb−Free Package is Available

NTGS3441T1 Typical Application

• Power Management in Portable and Battery−Powered Products, i.e.:
Cellular and Cordless Telephones, and PCMCIA Cards

NTGS3441T1 Connection Diagram
