QS5U17TR, QS5U17-TR, QS5U27

Table of contents:
Info of QS5U17TR
Info of QS5U17-TR
Info of QS5U27

QS5U17TR, QS5U17-TR, QS5U27 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:www.dayue-hk.com D/C:09+ ROHS

QS5U17TR, QS5U17-TR, QS5U27 Datasheet download

Five Points

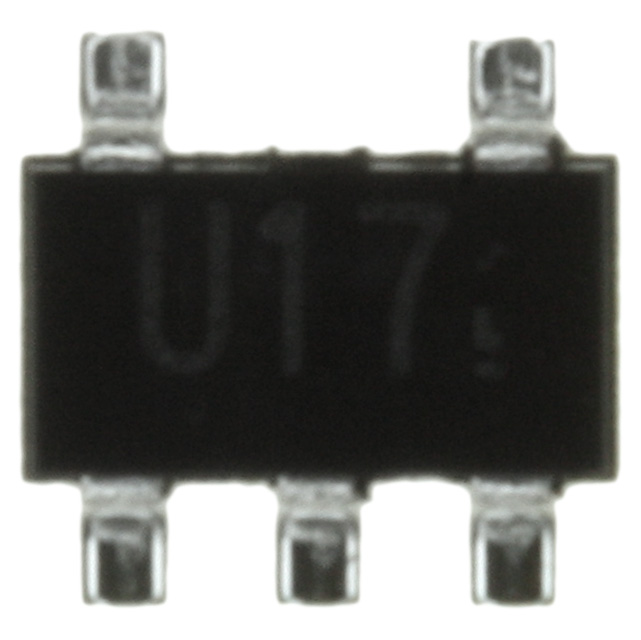

Part Number: QS5U17TR

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: www.dayue-hk.com

D/C: 09+ ROHS

Description: MOSFET N-CH 30V 2A TSMT5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

QS5U17TR Parameters

Technical/Catalog Information	QS5U17TR
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	2A
Rds On (Max) @ Id, Vgs	100 mOhm @ 2A, 4.5V
Input Capacitance (Ciss) @ Vds	175pF @ 10V
Power - Max	900mW
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	3.9nC @ 4.5V
Package / Case	TSMT5
FET Feature	Diode (Isolated)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	QS5U17TR QS5U17TR QS5U17CT ND QS5U17CTND QS5U17CT

QS5U27 Maximum Ratings

Parameter		Symbol	Limits	Unit
Drain-source voltage		V_DSS	−20	V
Gate-source voltage		V_GSS	±12	V
Drain current	Continuous	I_D	±1.5	A
Drain current	Pulsed	I_DP	±6.0	A^∗1
Source current (Body diode)	Continuous	I_S	−0.75	A
Source current (Body diode)	Pulsed	I_SP	−3.0	A^∗1
Channel temperature		T_ch	150	°C

Parameter	Symbol	Limits	Unit
Repetitive peak reverse voltage	V_RM	30	V
Reverse voltage	V_R	20	V
Forward current	I_F	0.5	A
Forward current surge peak	I_FSM	0.2	A_∗2
Junction temperature	T_j	125	°C

Parameter	Symbol	Limits	Unit
Total power dissipatino	P_D	1.0	W/TOTAL∗3
Range of strage temperature	T_stg	−40~+125	°C

QS5U27 Features

· The QS5U27 conbines Pch Treueh MOSFET with a Schottky barrier diode in a single TSMT5 package.
· Pch Treueh MOSFET have a low on-state resisternce with a fast switching.
· Pch Treueh MOSFET is neucted a low voltage drive (2.5V).
· The independently connected Schottky barrier diode have a low forward voltage.

QS5U27 Typical Application

· load switch, DC/DC conversion
