V100ZA15P, V100ZA3, V100ZT3

Table of contents:
Info of V100ZA15P
Info of V100ZA3
Info of V100ZT3

V100ZA15P, V100ZA3, V100ZT3 Selling Leads, Datasheet

MFG:Littelfuse Inc Category:Circuit Protection Package Cooled:VARISTOR D/C:2009+

V100ZA15P, V100ZA3, V100ZT3 Datasheet download

Five Points

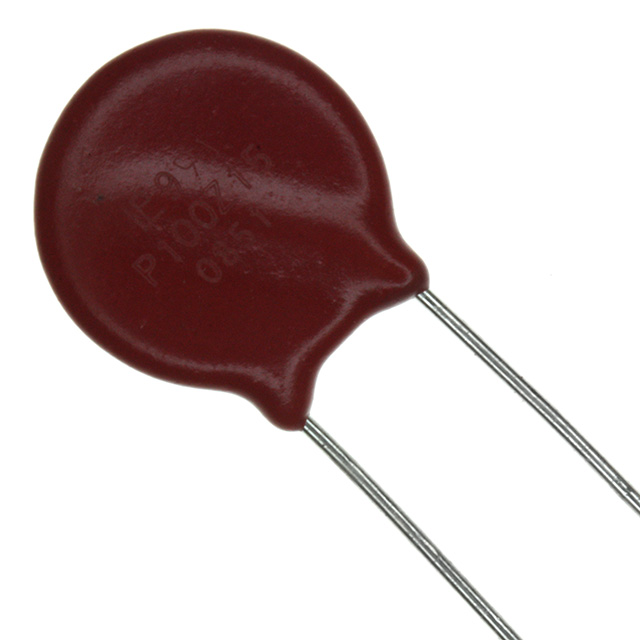

Part Number: V100ZA15P

Category: Circuit Protection

MFG: Littelfuse Inc

Package Cooled: VARISTOR

D/C: 2009+

Description: VARISTOR 100V 5J 7MM CRIMPED T/R

Price Break

1
10
100
500
1000
5000

Unit Price

.49000
.45300
.33980
.24160
.21895
.19630

Extended Price

0.49
4.53
33.98
120.80
218.95
981.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

V100ZA15P Parameters

Technical/Catalog Information	V100ZA15P
Vendor	Littelfuse Inc
Category	Circuit Protection
Maximum AC Volts	60Vrms
Maximum DC Volts	81VDC
Current-Surge	4.5kA
Package / Case	Disc 14mm
Varistor Voltage	100V
Energy	20J
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	V100ZA15P V100ZA15P F3074 ND F3074ND F3074

V100ZA15P General Description

The ZA Series of transient voltage surge suppressors are radial-lead varistors (MOVs) designed for use in the protection of low and mediumvoltage circuits and systems. Typical applications include motor control, telecom, automotive systems, solenoid, and power supply circuits to protect circuit board components and maintain data integrity.

These devices are available in five model sizes: 5mm, 7mm, 10mm, 14mm and 20mm, and feature a wide V_DC voltage range of 5.5V to 615V.

See ZA Series Device Ratings and Specifications table for part number and brand information.

V100ZA15P Maximum Ratings

Continuous:
Steady State Applied Voltage:                                                                                           ZA SERIES      UNITS
AC Voltage Range (_VM(AC)RMS) . . . . . . . . . ....................................................................... . 4 to 460            V
DC Voltage Range (V_M(DC)) . . . . . . . . . . . . . . ................................................................. 5.5 to 615            V
Transient:
Peak Pulse Current (I_TM)
For 8/20µs Current Wave (See Figure 2). . .. . . . . . . . . . . . . . . ....................................... 50 to 6500          A
Single Pulse Energy Range (Note 1)
For 10/1000µs Current Wave (W_TM) . . . . . . . . . . . ......................................................... ... 0.1 to 52           J
Operating Ambient Temperature Range (T_A) . . . . . . . . . . . . . .............................................. -55 to85
Storage Temperature Range (T_STG) . . . . . . . . . . ................................................................ -55 to125
Temperature Coefficient (V) of Clamping Voltage (V_C) at Specified Test Current . . . . . . . . . .. <0.01     %
Hi-Pot Encapsulation (Isolation Voltage Capability) . . . . . . . . . . . . . . . . . . . . ............................ 2500         V
(Dielectric must withstand indicated DC voltage for one minute per MIL-STD 202, Method 301)
Insulation Resistance . . . .. . . . . . . . . . . . . . . . . . ...................................................................... 1000       MΩ

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the
device. This is a stress only rating and operation of the device at these or any other conditions above
those indicated in the operational sections of this specification is not implied.

V100ZA15P Features

• Lead-free and RoHS compliant option available. Please see the device and ratings specifications table for
more information.
• Wide Operating Voltage Range V_M(AC)RMS . . . . . . . . . .4V to 460V
• DC Voltage Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5V to 615V
• No Derating Up to 85oC Ambient
• 5 Model Sizes Available . . . . . 5, 7, 10, 14, and 20mm
• Radial-Lead Package for Hard-Wired or Printed Circuit Board Designs
• Available in Tape and Reel or Bulk Pack
• Standard Lead Form Options

V100ZA3 Parameters

Technical/Catalog Information	V100ZA3
Vendor	Littelfuse Inc
Category	Circuit Protection
Maximum AC Volts	60Vrms
Maximum DC Volts	81VDC
Current-Surge	1.2kA
Package / Case	Disc 7mm
Varistor Voltage	100V
Energy	5.0J
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	V100ZA3 V100ZA3

V100ZT3 Parameters

Technical/Catalog Information	V100ZT3
Vendor	Littelfuse Inc
Category	Circuit Protection
Maximum AC Volts	60Vrms
Maximum DC Volts	81VDC
Current-Surge	1.2kA
Package / Case	Disc 7mm
Varistor Voltage	100V
Energy	5.0J
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	V100ZT3 V100ZT3
