555 Ignition Coil Driver

Published:2013/8/20 3:08:00 Author:lynne | Keyword: 555 Ignition Coil Driver | From:SeekIC

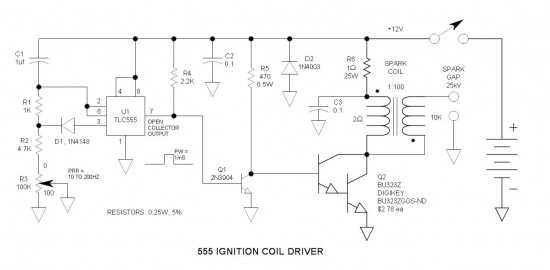

This ignition coil driver is a HOT one! From my recollection, it delivers a nastier spark than the legendary Ford Model T ignition coil. The circuit uses an inverted 555 oscillator that is coupled to an ON Semiconductor BU323Z Darlington transistor (350V, 10A) that drives a conventional inductive discharge ignition coil. In this topology, the inductive discharge voltage developed across the transformer primary is multiplied by the turns ration (factor of 100) to easily deliver a 25kV voltage to the spark gap.
