Constituted by the INA118 differential voltage - current converter

Published:2014/5/21 20:31:00 Author:lynne | Keyword: Constituted by the INA118 differential voltage - current converter, INA118

Constituted by the INA118 differential voltage - current converter
Constituted by the INA118 differential voltage - current converter

Constituted by the INA118 differential voltage - current converter circuit as shown: As shown by INA118 constitute differential voltage - current converter. INA118 current source constituted by the output of R1 and A1, due to high input impedance of the operational amplifier, the bias current is extremely small, and the output current to the load is negligible compared to, so the output current Io can be considered constant, and only the input voltage and R1 concerned that Io = (VIN/R1) × G. A1 Selection and IB error below. >The current source output current Io within a certain range regardless of the load, the input voltage and depends only on the resistors R1, when R1 is fixed, the output current and the input voltage VIN related only to complete the differential voltage - current conversion.   (View)

View full Circuit Diagram | Comments | Reading(2083)

Configured INA155/156 directly driven by a capacitive input high speed A / D converter

Published:2014/5/15 21:33:00 Author:lynne | Keyword: Configured INA155/156 directly driven by a capacitive input high speed A / D converter, INA155, INA156, ADS7818, ADS7834

Configured INA155/156 directly driven by a capacitive input high speed A / D converter

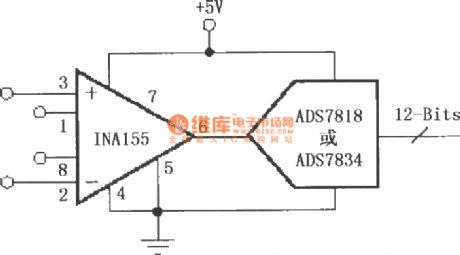

Configured INA155/156 directly driven by a capacitive input high speed A / D converter circuit as shown: A capacitive high-speed direct drive input configured as shown in FIG INA155/156 by the A / D converter in Figure G = 10. After INA155 input voltage amplification to 12 high-speed low-power sampling A / D converter ADS7818 or ADS7834. ADS7818 or ADS7834 inputs for the internal capacitor array (CDAC), is the capacitive input, analog signal conversion A / D converter input is 12-bit digital signal output, fsample = 500kHz.   (View)

View full Circuit Diagram | Comments | Reading(863)

INA321/322 constituted by a direct drive capacitive input A / D converter

Published:2014/5/15 20:35:00 Author:lynne | Keyword: INA321/322 constituted by a direct drive capacitive input A / D converter, INA321, ADS7818, ADS7822

INA321/322 constituted by a direct drive capacitive input A / D converter
INA321/322 constituted by a direct drive capacitive input A / D converter circuit as shown: As shown directly driving a capacitive input constituted by INA321/322 A / D converter. Since INA321/322 output is a low, so you can work at high frequencies directly drive capacitive loads. After INA321/322 amplified input voltage output, directly to the 12 high-speed low-power sampling A / D converter ADS7818 or ADS7822. ADS7818 or ADS7822 internal input terminal of the capacitor array (CDAC) digital-analog conversion, is a capacitive input, converts the analog signal A / D converter 12 converts the input digital signal output.   (View)

View full Circuit Diagram | Comments | Reading(622)

1.2 V voltage could be turned into 9 V converter circuit diagram

Published:2014/2/24 20:16:00 Author:lynne | Keyword: 1.2 V voltage could be turned into 9 V converter circuit diagram,

1.2 V voltage could be turned into 9 V converter circuit diagram
1.2 V voltage could be turned into 9 V converter circuit diagram

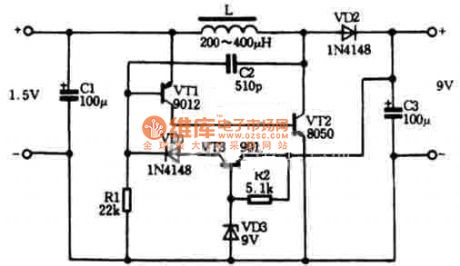

Figure 1 is a DC voltage boost circuit. The circuit can be a boost to 1.5V battery 9V, 9V laminated battery to replace. Circuit load input current is less than 1.2mA, the conversion efficiency up to 60%. The circuit consists of an oscillation circuit and voltage regulator circuit, which VT1, VT2, C2 composition oscillator, color code inductance L is the inductor, VD2 rectifier diode, C3 is the output filter capacitor, VT3, VD1, VD3 and R2 is stable the output voltage of the voltage regulator circuit. The output voltage is approximately equal to the value of VD3 of regulator. DC boost regulator circuit diagram shown in Figure 1 Figure 2 is a use of 1.2V, 500mAh nickel-cadmium batteries do power inverter circuit, the output voltage of 9V, digital multimeter available for use. Power inverter circuit shown in Figure 2   (View)

View full Circuit Diagram | Comments | Reading(1834)

The basic three-level DC converter circuit diagram

Published:2014/1/23 21:16:00 Author:lynne | Keyword: The basic three-level DC converter circuit diagram,

The basic three-level DC converter circuit diagram
The basic three-level DC converter circuit diagram shown in Fig.:   (View)

View full Circuit Diagram | Comments | Reading(933)

Zero-voltage switching three-level DC-DC converter circuit

Published:2014/1/23 20:30:00 Author:lynne | Keyword: Zero-voltage switching three-level DC-DC converter circuit,

Zero-voltage switching three-level DC-DC converter circuit

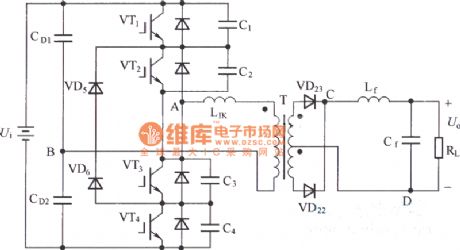

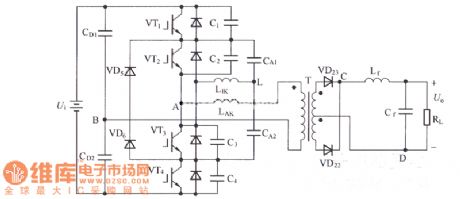

Zero-voltage switching three-level DC-DC converter circuit shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(933)

Wide load range three-level zero-voltage switching DC-DC converter circuit

Published:2014/1/23 20:27:00 Author:lynne | Keyword: Wide load range three-level zero-voltage switching DC-DC converter circuit,

Wide load range three-level zero-voltage switching DC-DC converter circuit

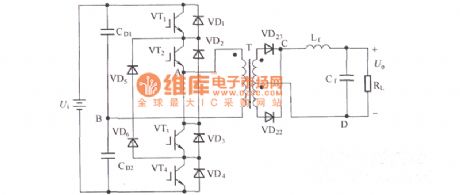

Wide load range three-level zero-voltage switching DC-DC converter circuit shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(674)

ZCZVT-PWM converter circuit

Published:2014/1/21 21:06:00 Author:lynne | Keyword: ZCZVT-PWM converter circuit,

ZCZVT-PWM converter circuit

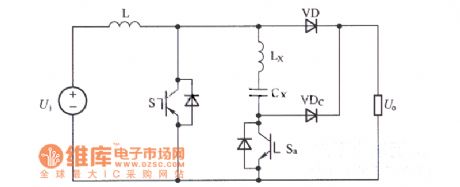

ZCZVT-PWM converter circuit shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(599)

Improved ZCT-PWM converter topology circuit

Published:2014/1/20 21:10:00 Author:lynne | Keyword: Improved ZCT-PWM converter topology circuit,

Improved ZCT-PWM converter topology circuit
Improved ZCT-PWM converter topology circuit shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(588)

Ordinary ZCT-PWM converter circuit diagram

Published:2014/1/20 20:28:00 Author:lynne | Keyword: Ordinary ZCT-PWM converter circuit diagram,

Ordinary ZCT-PWM converter circuit diagram
Ordinary ZCT-PWM converter circuit diagram shown in figure:   (View)

View full Circuit Diagram | Comments | Reading(629)

Double-barrelled forward converter circuit topology circuit diagram

Published:2014/1/5 20:10:00 Author:lynne | Keyword: Double-barrelled forward converter circuit topology circuit diagram,

Double-barrelled forward converter circuit topology circuit diagram

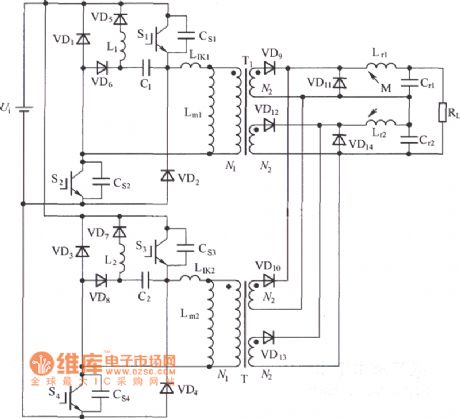

Double-barrelled forward converter circuit topology circuit diagram shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(691)

Forward type ZVT - PWM converter main circuit principle diagram

Published:2014/1/5 20:05:00 Author:lynne | Keyword: Forward type ZVT - PWM converter main circuit principle diagram,

Forward type ZVT - PWM converter main circuit principle diagram

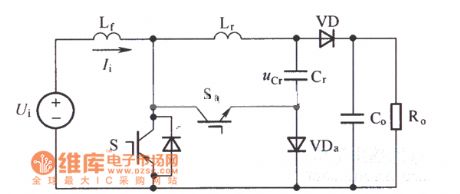

Forward type ZVT - PWM converter main circuit principle diagram as shown:   (View)

View full Circuit Diagram | Comments | Reading(687)

Quasi-resonant soft-switching flyback converter schematic circuit

Published:2014/1/5 20:02:00 Author:lynne | Keyword: Quasi-resonant soft-switching flyback converter schematic circuit,

Quasi-resonant soft-switching flyback converter schematic circuit

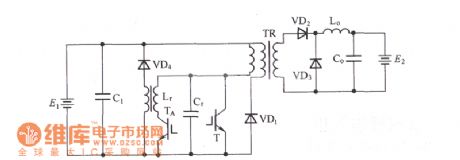

Quasi-resonant soft-switching flyback converter schematic circuit shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(836)

Double Forward Converter circuit

Published:2013/12/12 20:17:00 Author:lynne | Keyword: Double Forward Converter circuit,

Double Forward Converter circuit

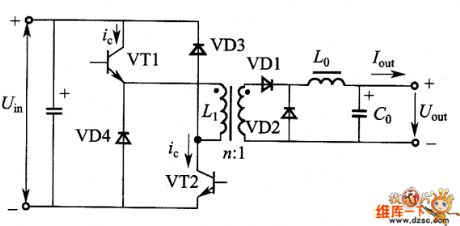

Double Forward Converter circuit shown in Figure:   (View)

View full Circuit Diagram | Comments | Reading(853)

Single tube forward converter circuit diagram

Published:2013/12/12 20:18:00 Author:lynne | Keyword: Single tube forward converter circuit diagram,

Single tube forward converter circuit diagram

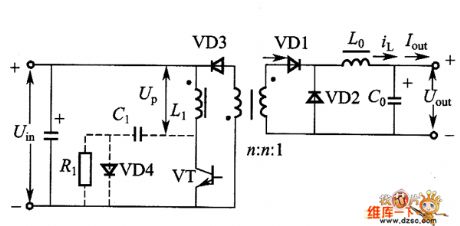

Single tube forward converter circuit diagram shown in Fig.:   (View)

View full Circuit Diagram | Comments | Reading(646)

LF355 Circuit

Published:2013/11/27 21:09:00 Author:lynne | Keyword: LF355 Circuit

LF355 Circuit

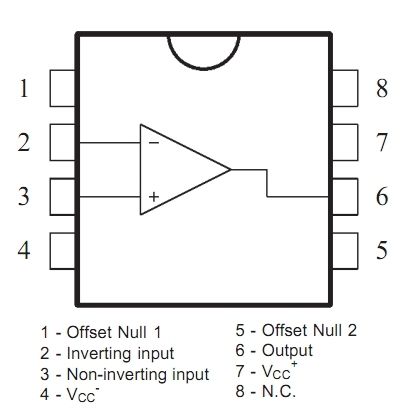

LF355 circuits are monolithic J-FET input operational amplifiers incorporating well matched, high voltage J-FET on the same chip with standard bipolar transistors. This amplifiers feature low input bias and offset currents, low input offset voltage and input offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise level. LF355 typical applications precision high speed integrators fast D/A and converters high impedance buffers wideband, low noise, low drift amplifiers logarithimic amd photocell amplifiers sample and hold circuits   (View)

View full Circuit Diagram | Comments | Reading(781)

High Voltage Converter Circuits

Published:2013/11/27 21:01:00 Author:lynne | Keyword: High Voltage Converter Circuits

High Voltage Converter Circuits
High Voltage Converter Circuits

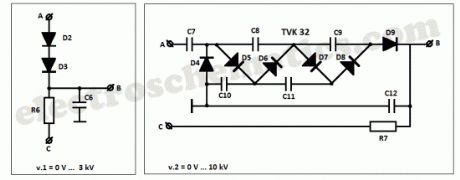

Starting from a 30 volt power supply this high voltage converter circuit can deliver a voltage between 0 to 3 kV (version 1) or from 0 to 10 kV (version 2).IC 4011 gates N1 … N3 are connected as astable multivibrator that commands the Darlington T1/T2 with an rectangular impulse of 20 kHz. The transistors cannot be brought to saturation because of the low current that goes through them which will result in a very short block period. The rapid blocking of the transistors will produse an impulse of almost 300 V in the transformer’s T1 primary winding. This voltage is multiplied by the numbers of turns from the secondary winding. For the first version it uses a monophased rectification. The second one uses a cascade rectifier from an old TV set and it delivers a 3 times higher voltage. 3 kV/10 kV High-Voltage Converter Schematic Version 1 and 2 of the voltage converter IC2 LF355 regulates the output voltage by comparing the P1′s voltage with that from the common point of the voltage divider R6/R8 or R7/R8. If the output outreaches the established voltage level, IC2 will reduce the supply voltage from the output through T3. The most important part of the high voltage converter is the transformer. You may use a variety of cores E, E+I or ferrite with 30 mm diameter. The core must not have any air gap and a value for Al of 2000 nH is pretty good. The primary winding consists of 25 turns of 0.7 … 1 mm enamelled copper and the secondary winding consists of 500 turns of 0.2 … 0.3 mm conductor. Both of the windings must have very good insulation from each other. Regarding this high voltage converter, please remember: capacitor C6 must support a voltage of at least 3 kV R6 at version 1 is made of six 10 MΩ resistors in series. R7 is made of six 50 MΩ resistors in series. This is done in order to eliminate the voltage spikes. Each circuit consumes avout 50 mA without the load and 350 mA with a 2 … 3 W load. T2 and T3 transistors need good heatsinks. Components list of the high voltage converterR1 = 4.7KR2 = R5 = 1KR3 = 330R4 = 2.7KR6 = 60MR7 = 300MP1 = 500K C1 = 10nC2 = C4 = C5 = 100nC3 = 1000µFC6 = 10n / 3kVC7 …. C12 = from tv module TVK 32 D1 = Zener 11VD2 = D3 = BY127D4 …. D9 = from tv module TVK 32 T1 = 2N3055T2 = BF259T3 = BU208 Tr1 = read the article IC1 = 4011IC2 = LF355 google_ad_client= ca-pub-9265205501290597 ;google_ad_slot= 6648404198 ;google_ad_width=336;google_ad_height=280;   (View)

View full Circuit Diagram | Comments | Reading(1129)

3V to 9V DC Converter Circuit

Published:2013/11/18 0:10:00 Author:lynne | Keyword: 3V to 9V DC Converters

3V to 9V DC Converter Circuit
3V to 9V DC Converter Circuit
3V to 9V DC Converter Circuit

Here are some 3V to 9V DC converter circuits that were requested by some of our visitors. It may be helpful to have one of this converters when no 9V battery is available or if you consider that they are too expensive. The first circuit is very simple, it uses the TL496 power supply controller, a coil and a electrolytic capacitor.TL496 3 to 9 volt converter circuit The maximum output voltage is actually 8.6V and current is around 80mA.The input current (the current drawn from the batteries) is 405mA at the maximum output current. Without load the current consumption is 125µA and the batteries life is around 166 days. Here is another 1.5… 4.5V to 9V converter3 volt to 9 volt with LMC555This dc converter is built with the CMOS version of 555 timer. You can get 12V too if you change the zener diode to a 12V version. Probably there are more 3 to 9 volt dc converters but for the moment those are the only ones presented in this article.   (View)

View full Circuit Diagram | Comments | Reading(1373)

TL497A Voltage Converter

Published:2013/10/30 21:38:00 Author:lynne | Keyword: Voltage Converter

TL497A Voltage Converter
This voltage converter is built with TL497A and converts an input voltage of 5…12 voltage to a higher level of 15…30 volts. This is specially helpful in mobile applications where power supply levels are commonly limited to 12 volts supplied by batteries.The voltage converter circuit uses the TL497A as a flyback-voltage converter. The choke coil is 40uH/2A. Capacitors C2 annd C1 suppress voltage spikes. The maximum output current depends on the difference between the input and the output voltages and is around 100mA. The ripple voltage is relatively low. The standby current is around 8mA and the efficiency is about 70%. TL497A voltage converter circuit diagram   (View)

View full Circuit Diagram | Comments | Reading(1056)

AC to DC Voltage Converter Circuit

Published:2013/10/17 20:24:00 Author:lynne | Keyword: AC to DC Voltage Converter Circuit

AC to DC Voltage Converter Circuit
This AC to DC converter circuit is capable of converting an alternative voltage within 70V – 260V range into a DC voltage within 180V to 350V DC range, so it can be used for 110V and 220V too. To achieve this voltage conversion we use a MC34161 rectifier as a voltage doubler at low input voltages and as a classic rectifier at high input voltages. MC34161 includes a reference power supply which delivers 2.54V at pin 1. The signal level applied at pin 2 is internally compared with a 1.27V voltage.D5 zener diode, togheter with R1 and C4 provide IC’s required 12V voltage. Capacitor’s voltage of C2 and C3 must be greater than 250V.   (View)

View full Circuit Diagram | Comments | Reading(1243)
